Logo on the facade
Logo for branding/navigation
Nav. system Accolade
Totems and signs
Totem — two lines
Entrance Totem
Tenants totem L
1500 x 4500 mm
1500 x 4500 mm
Tenants totem M
1500 x 3800 mm
1500 x 3800 mm
Tenants totem S
1500 x 3000 mm
1500 x 3000 mm
Tenants sign
Totem — three lines
Entrance Totem
Tenants totem L
1500 x 4500 mm
1500 x 4500 mm
Tenants totem M
1500 x 3800 mm
1500 x 3800 mm
Tenants totem S
1500 x 3000 mm
1500 x 3000 mm
Tenants sign
Totem — 1400 mm
Tenants totem M
1400 x 3800 mm
Two lines
1400 x 3800 mm
Two lines
Tenants totem S
1400 x 3000 mm
Two lines
1400 x 3000 mm
Two lines
Tenants totem M
1400 x 3800 mm
Three lines
1400 x 3800 mm
Three lines
Tenants totem S
1400 x 3000 mm
Three lines
1400 x 3000 mm
Three lines
Entrance totem (size L)
Frontside
Backside
Perspective view
| Dimensions | Shape | Material specification |
|---|---|---|
| 1500 x 4500 x 500 mm | Hollowed panel with internal light, backlit letters and logos | The dark blue surface is made of Dibond, painted in RAL 5013. The light blue surface inside the totem pole is made of opal Plexiglas, covered with a blue translucent film. Supporting frame made of hot-dip galvanized steel profiles. Backlighting with LED modules inside the totem pole. Anchoring to concrete foundation for chemical anchors. |
Tenants totem (size L) - 5 to 11 rows
Frontside
Backside
Perspective view
Direction sign (same with tenants totems size M & S)
a – using logos (up to 2) in one line
b – using text (up to 2) in one line
c – using text names (up to 3) in two lines
b – using text (up to 2) in one line
c – using text names (up to 3) in two lines
a - direction
b - building index number
c - list of tenants – names or logos
b - building index number
c - list of tenants – names or logos
Types of direction arrows
| Dimensions | Shape | Material specification |
|---|---|---|
| 1500 x 4500 x 400 mm + 200 mm arrow box |
Hollowed panel with internal light, backlit letters and logos | The dark blue surface is made of Dibond, painted in RAL 5013. The light blue surface inside the totem pole is made of opal Plexiglas, covered with a blue translucent film. Supporting frame made of hot-dip galvanized steel profiles. Backlighting with LED modules inside the totem pole. Anchoring to concrete foundation for chemical anchors. |
Tenants totem (size M) - 5 to 10 rows
Frontside
Backside
Perspective view
| Dimensions | Shape | Material specification |
|---|---|---|
| 1500 x 3800 x 400 mm + 200 mm arrow box |
Hollowed panel with internal light, backlit letters and logos | The dark blue surface is made of Dibond, painted in RAL 5013. The light blue surface inside the totem pole is made of opal Plexiglas, covered with a blue translucent film. Supporting frame made of hot-dip galvanized steel profiles. Backlighting with LED modules inside the totem pole. Anchoring to concrete foundation for chemical anchors. |
Tenants totem (size S) - 6 rows
Frontside
Backside
Perspective view
| Dimensions | Shape | Material specification |
|---|---|---|
| 1500 x 3000 x 400 mm + 200 mm arrow box |
Hollowed panel with internal light, backlit letters and logos | The dark blue surface is made of Dibond, painted in RAL 5013. The light blue surface inside the totem pole is made of opal Plexiglas, covered with a blue translucent film. Supporting frame made of hot-dip galvanized steel profiles. Backlighting with LED modules inside the totem pole. Anchoring to concrete foundation for chemical anchors. |
Tenants sign
Two row type
Several rows type
Types of direction arrows
a – using logos (up to 2) in one line
b – using text (up to 2) in one line
c – using text names (up to 3) in two lines
b – using text (up to 2) in one line
c – using text names (up to 3) in two lines
a – direction
b – building index number
c – list of tenants – names or logos
b – building index number
c – list of tenants – names or logos
| Dimensions | Shape | Material specification |
|---|---|---|
| 1115 x 405 mm x 2000 mm | Aluminium sign | – |
Building Branding
navigation.sectionBuilding.subtitle.stripeHeight24
navigation.sectionBuilding.labelAF1p1
navigation.sectionBuilding.labelAF1p2
navigation.sectionBuilding.labelAF1p3
navigation.sectionBuilding.labelAF1p4
navigation.sectionBuilding.subtitle.noStripeHeight20plus
navigation.sectionBuilding.labelAF1p1
navigation.sectionBuilding.labelAF1p2
navigation.sectionBuilding.labelAF1p3
navigation.sectionBuilding.labelAF1p4
navigation.sectionBuilding.subtitle.noStripeDarkFacadeHeight20Plus
navigation.sectionBuilding.labelAF1p1
navigation.sectionBuilding.labelAF1p1
navigation.sectionBuilding.labelAF1p3
navigation.sectionBuilding.labelAF1p4
navigation.sectionBuilding.subtitle.noStripeFacades
navigation.sectionBuilding.subtitle1
navigation.sectionBuilding.text1navigation.sectionBuilding.subtitle2
navigation.sectionBuilding.text2navigation.sectionBuilding.subtitle3
navigation.sectionBuilding.label3
navigation.sectionBuilding.subtitle4
navigation.sectionBuilding.text4a
navigation.sectionBuilding.text4b
navigation.sectionBuilding.label4
Flags
| Dimensions | Flagpole height | Other specifications |
|---|---|---|
| 1200 x 3500 mm | 8000 mm | The logo is always in the center of the flag |
Flag display
Rotating truck heat revolves because of the wind, the flag is always outstretched.
Flag fixing
Rope with a distance ball, windtracker arm, plastic bands, flag weight.
Hoisting and lowering of the flag
Using internal halyard system with internal cleat or hoisting winch.
| Tube profile | Anodizing | Wall thickness |
|---|---|---|
| Sectional aluminium | 20 microns |
2/2.5 mm [5–6 m] 2/2.5/2.5 mm [7–10 m] 2/2.5/2.5/3.5 mm [11–12 m] |
Available accessories
1
2, 3
4
| # | Pole top | Weight (Kg) |
|---|---|---|
| 1 | Rotating truck head | 0.21 |
| 2 | Golden bulb / round finial (brass) | 0.22 |
| 3 | Silver bulb / round finial (aluminium) | 0.16 |
| 4 | Plastic cap (option with rotating socket) | 0.06 |
1
2
3
4
5
6
| # | Halyard system | Weight (Kg) |
|---|---|---|
| 1 | Rope (kevlar) + swivel + distance ball | 0.01 / mb + 0.07 |
| 2 | Internal cleat (optional) | 0.026 |
| 3 | Hoisting winch (optional) | 0.915 |
| 4 | Windtracker arm | 1.17 |
| 5 | Flag weight | 1.3 |
| 6 | Plastic band (polythene) | 0.034 / mb |
1
2
3
| # | Fitting | Weight (Kg) |
|---|---|---|
| 1 | Grounding sleeve 65/80 / 82.5 mm [5-10 m] (for the foundation) | 0.5 / 0.6 / 0.6 |
| 2 | Suspension base plate 65/80 / 82.5 / 95 mm (for the foundation) | 6.95 / 8.15 / 8.15 / 9.45 |
| 3 | Portable base (for paving stones sized 500x500 mm). Installation using the upper part of the hinged base plate | 18.6 |
General specifications
| Height [m] | 6 | 8 | 9 | 10 | 10 |
|---|---|---|---|---|---|
| Number of sections [pc] | 2 | 3 | 3 | 3 | 3 |
| Flagpole diameter (top / bottom) [m] | 50/65 | 50/65/80 | 50/65/80 | 50/65/80 | 50/65/80 |
| Net weight, no accessories [kg] | 7.2 | 12.1 | 17.1 | 17.1 | 17.1 |
| Recommended flag size [m] | 1,2x3,5 [4,2 m2] | 1,2x3,5 [4,2 m2] | 1,5x4 [6 m2] | 1,5x4 [6 m2] | 1,5x4 [6 m2] |
| Transport packaging size [cm] ±5% | 380x8x8 | 360x14x9 | 420x14x9 | 420x14x9 | 420x14x9 |
| + folding base plate | 380x32x30 | 3680x32x30 | 420x32x30 | 420x32x30 | 420x32x30 |
Guard house branding
| Dimensions of branded area | Branding rules |
|---|---|
| Blue stripe | Branding of the guardhouse is a rim, front and back made of aluminium sheet painted in RAL 5003. Logo milled in the face, plexiglas opal fixed from the inside, illuminated with Led modules of semaphore type. Logo is centred on the dark blue panel, both vertically and horizontally. The guardhouse is marked on four sides. |

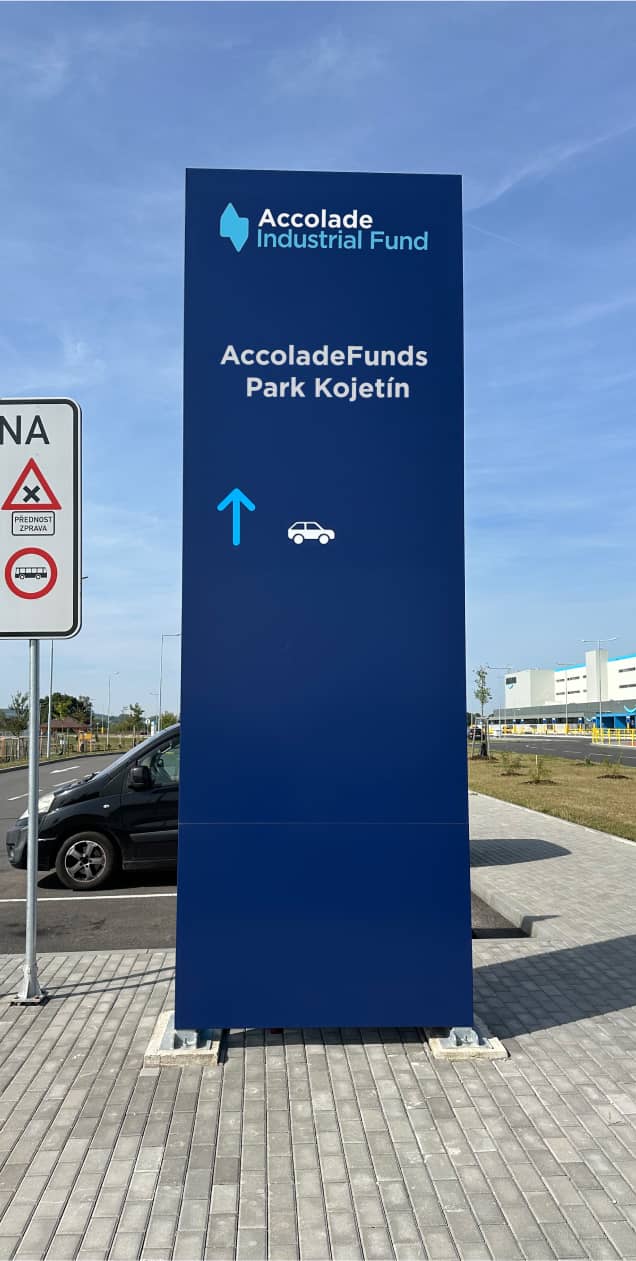

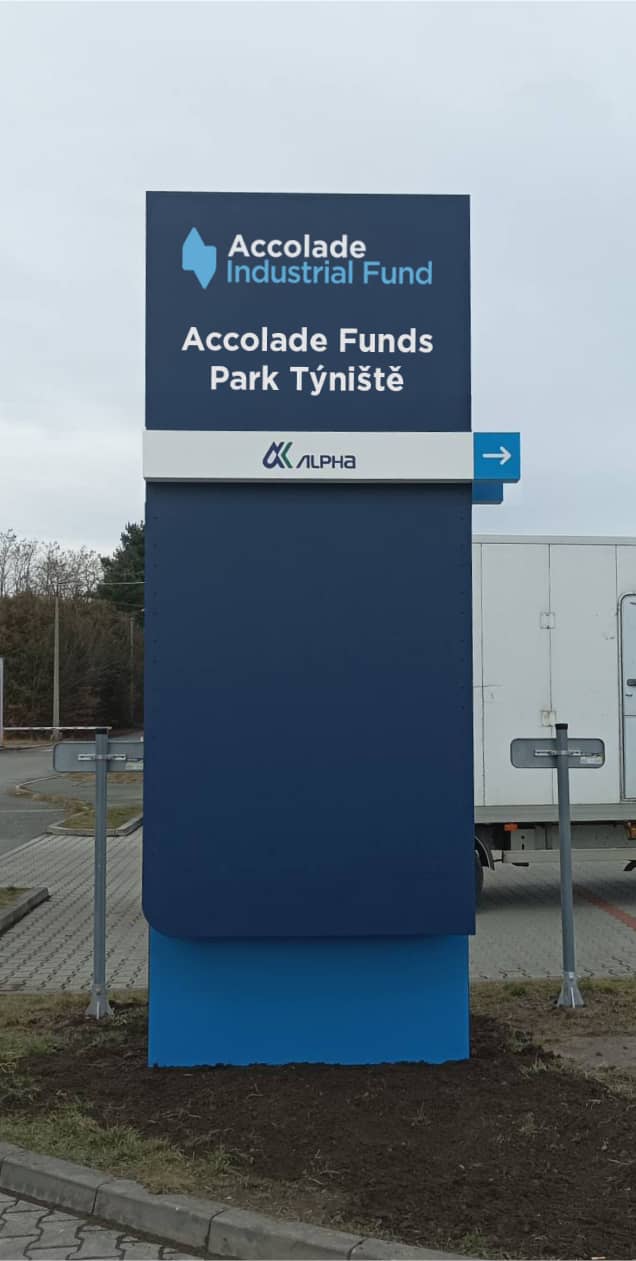

Real-life samples
