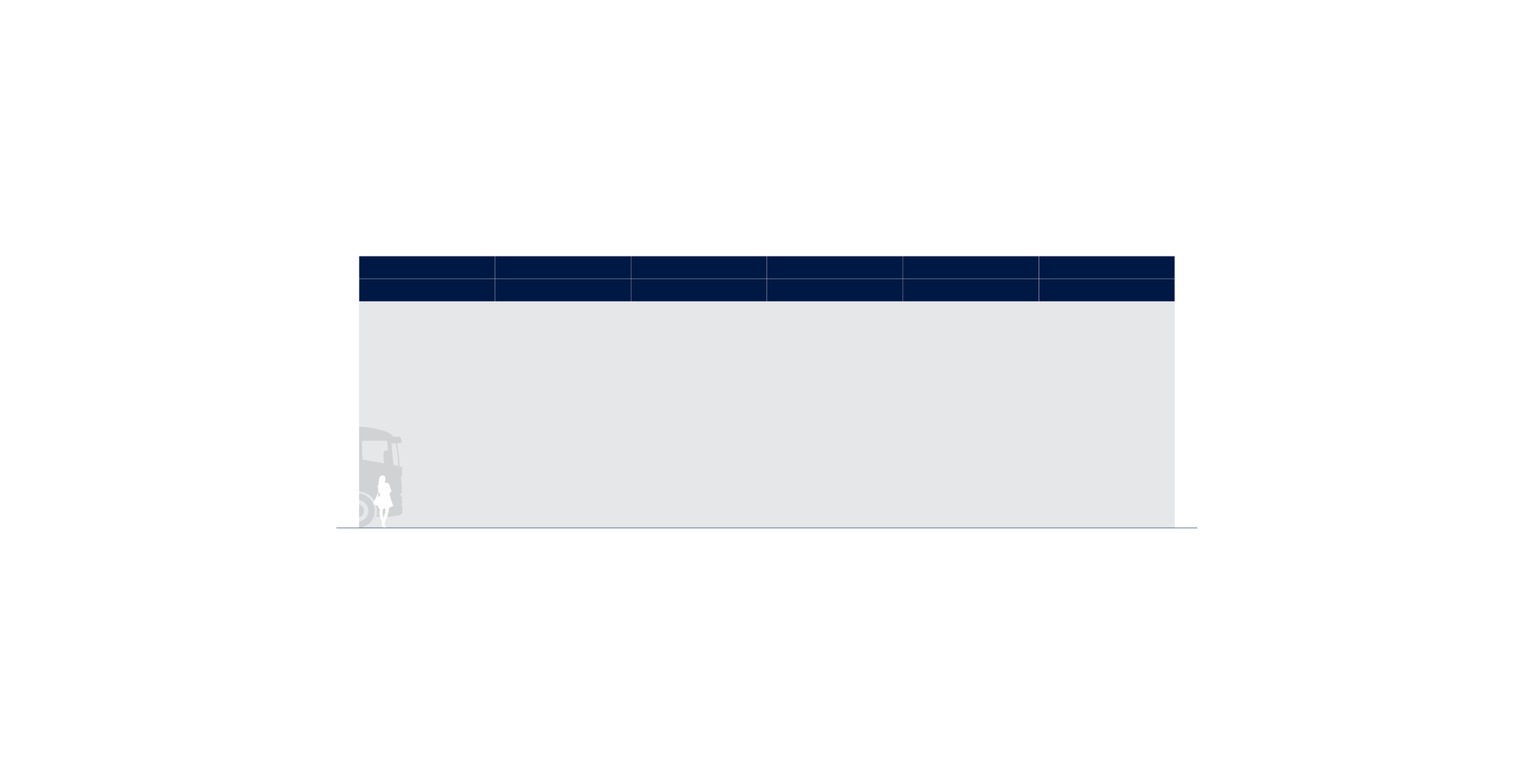

Building type
Double stripe facade, standard size

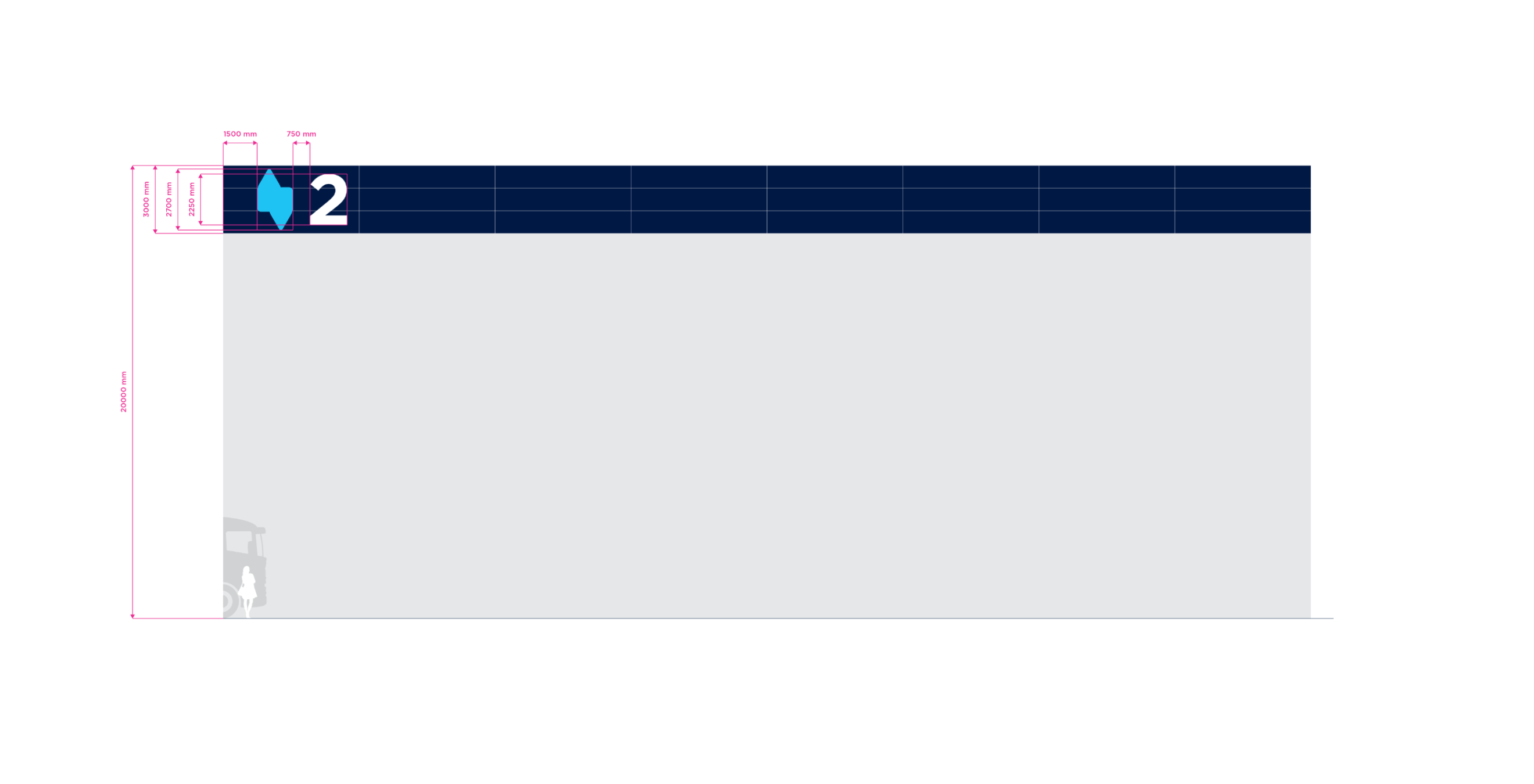

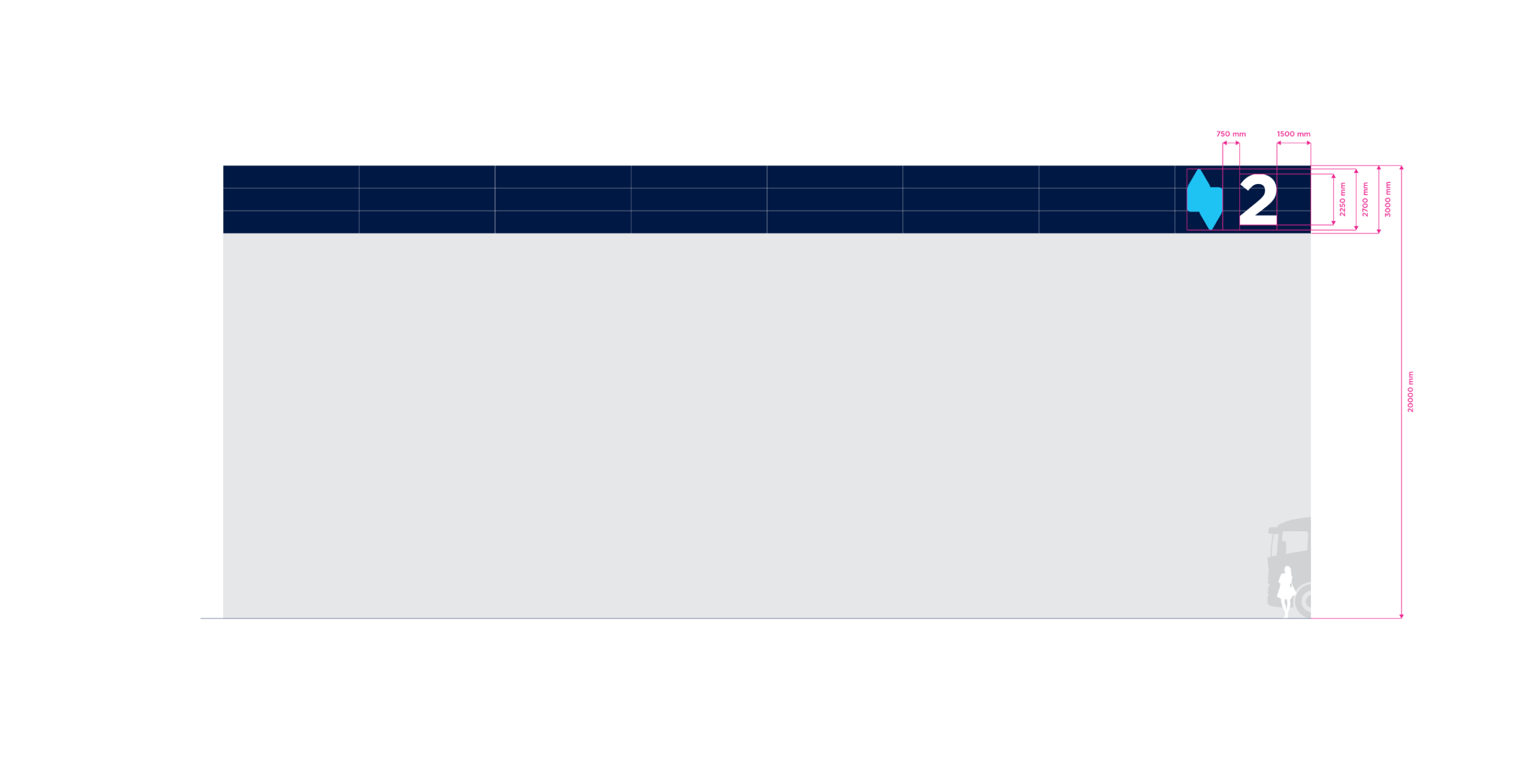

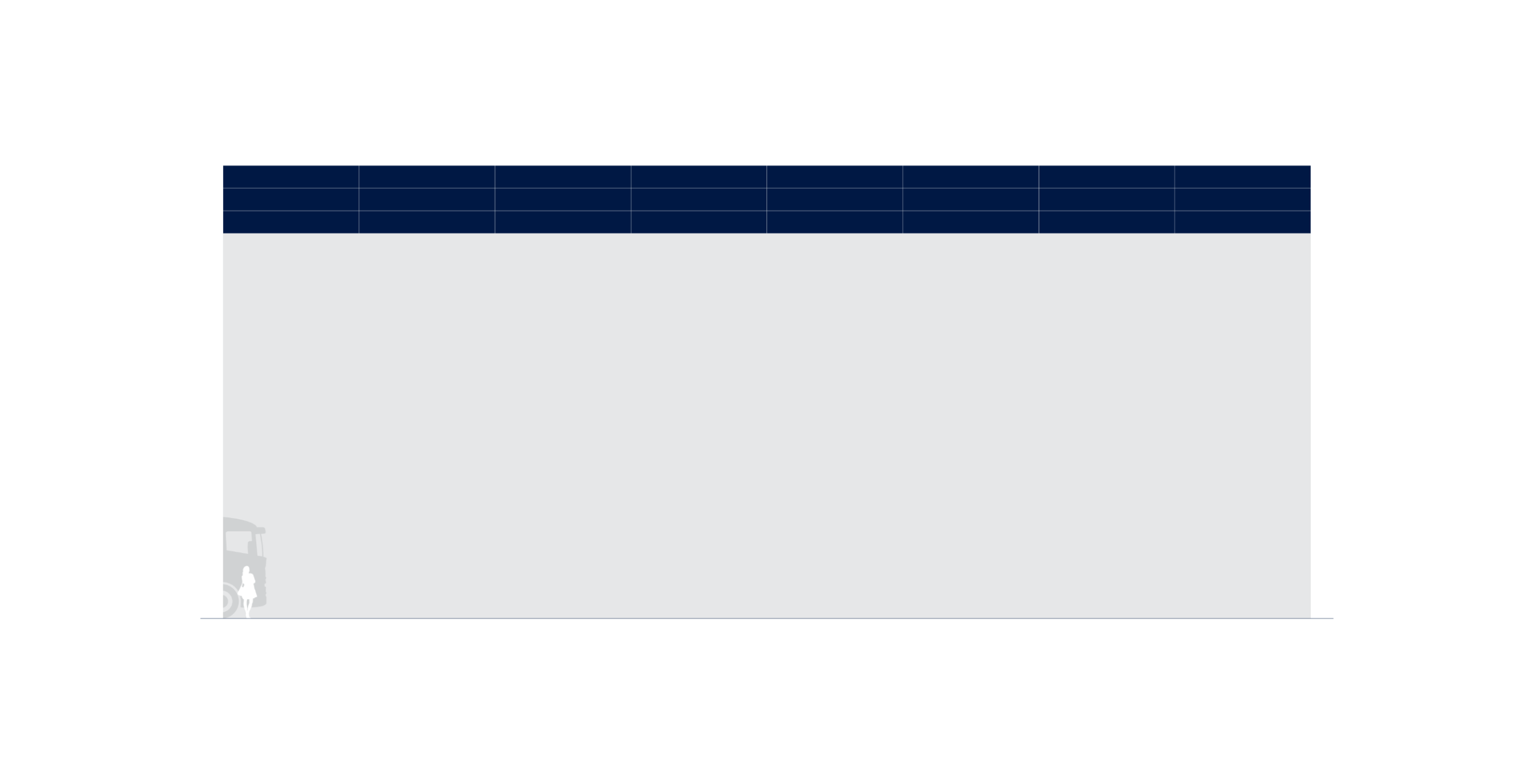

Building type
Triple stripe facade, large size

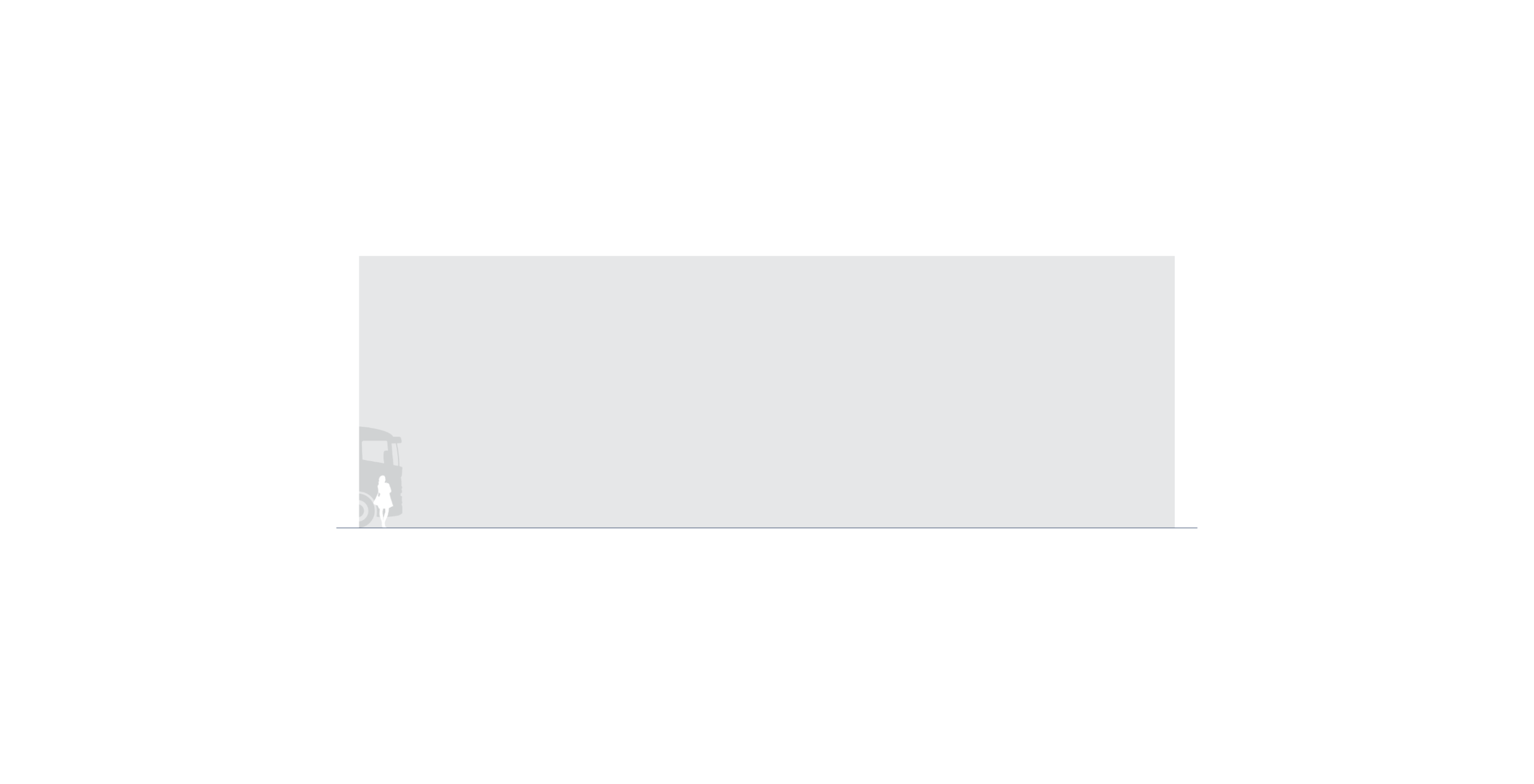

Building type
Solid color facade, standard size

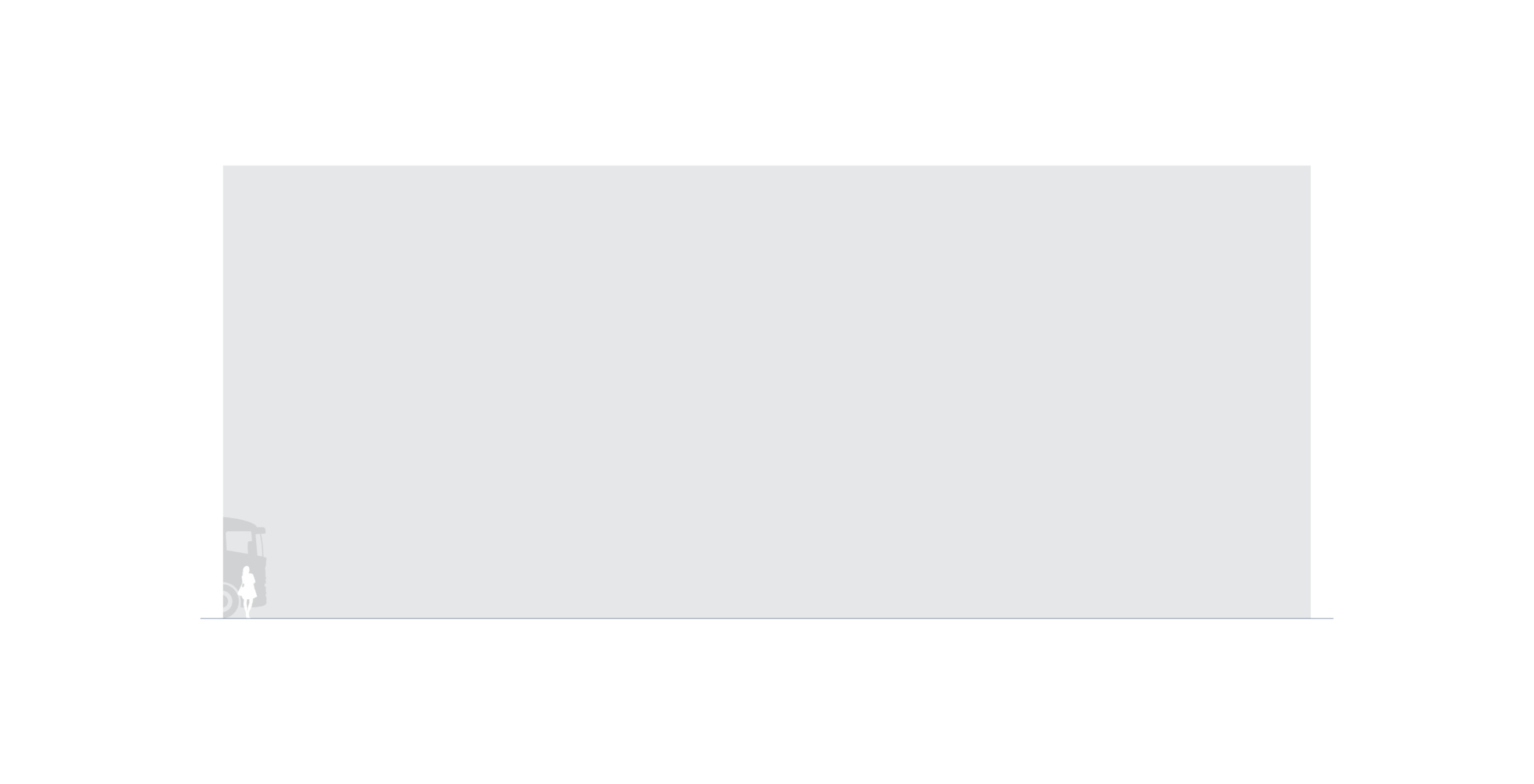

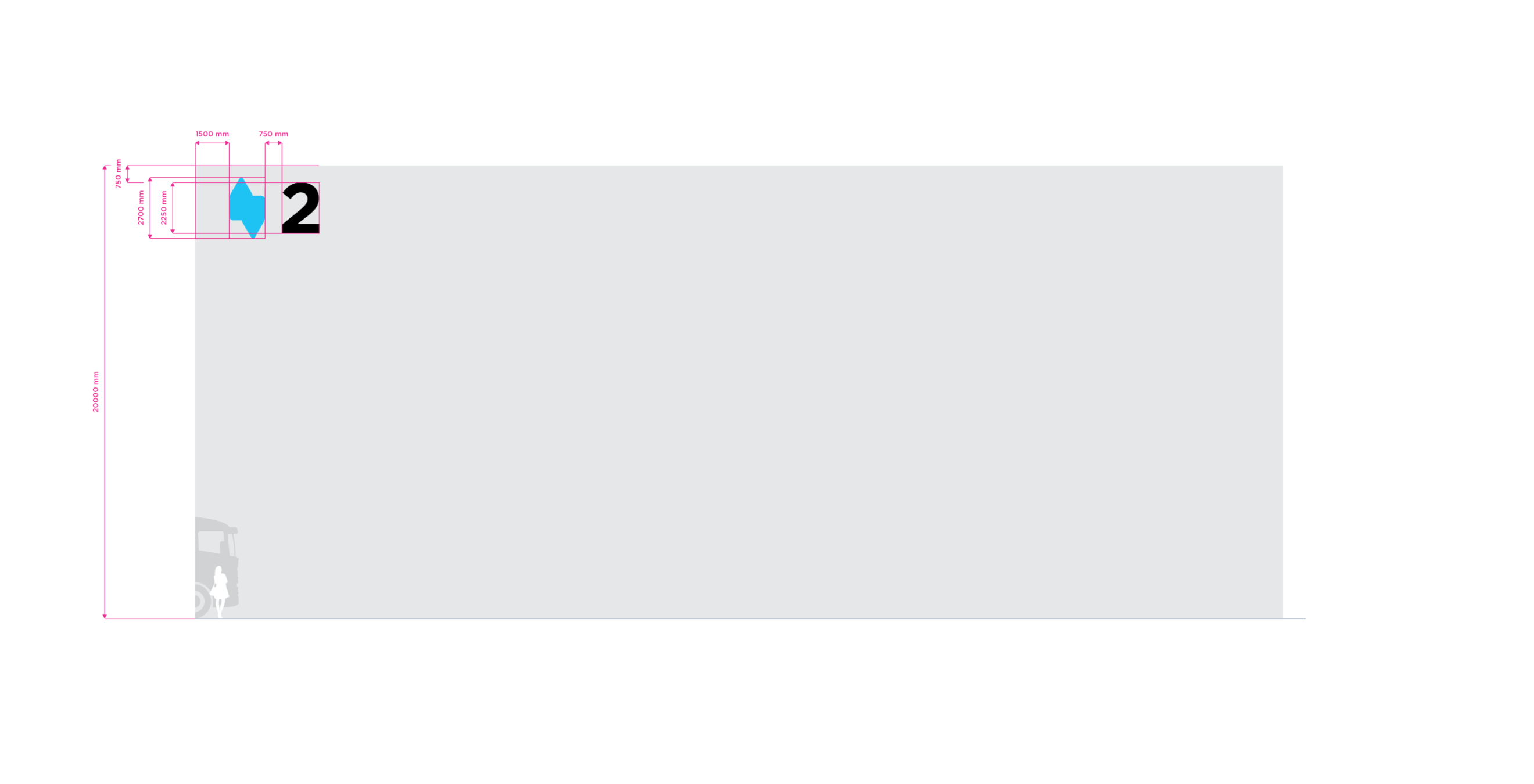

Building type
Solid color facade, large size
| Branding rules | Material specification |
|---|---|
| Double Stripe is the standart for stripe facade building type. The height of the building may vary in practice. For the purposes of standardizing branding rules, we specify the size standard as 12 meters and the large size category as 20 meters. | Plastic illuminated Accolade logo with a total width of 8850 mm and height of 1800 mm, illuminated index with a total width of 2740 mm and height of 1800 mm. Character depth 120 mm. The individual characters are shaped and welded from AL sheet metal and painted with two-component acrylic paint in a RAL shade as agreed. The front surface of the characters is made of opal plexiglass with a translucent film in the required color; the index is without adhesive film. The plexiglass is attached behind a glued inner plexiglass rim. Internal illumination with LED light-emitting diodes. Power transformers are located inside the signs. Individual signs will be mounted directly behind the wall of the building. Power supply 230 V, 50 Hz, TN-S system, required supply min. CYKY3C x 1.5 mm2 10 A/D, power consumption approx. 200 W. |
Technical details

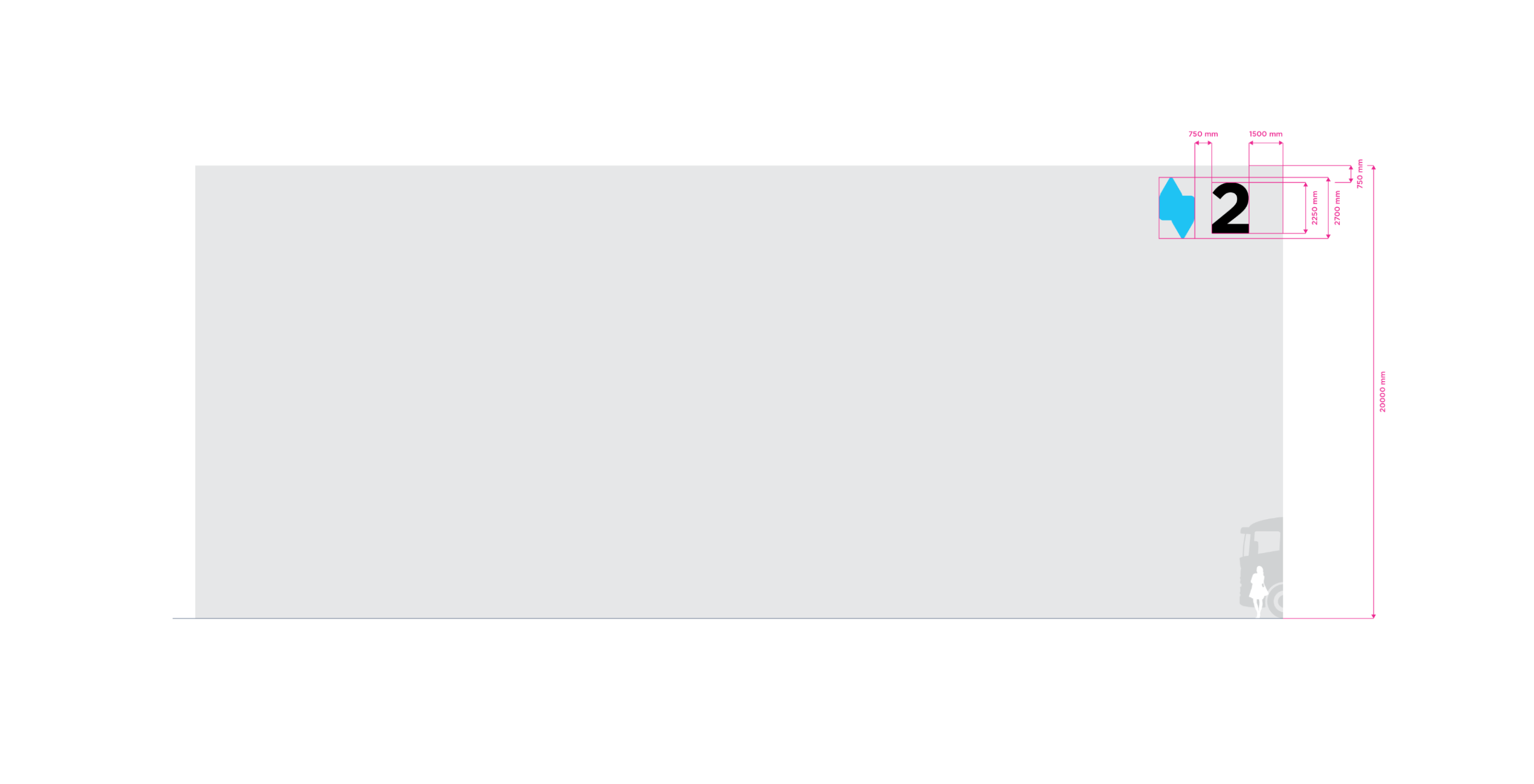

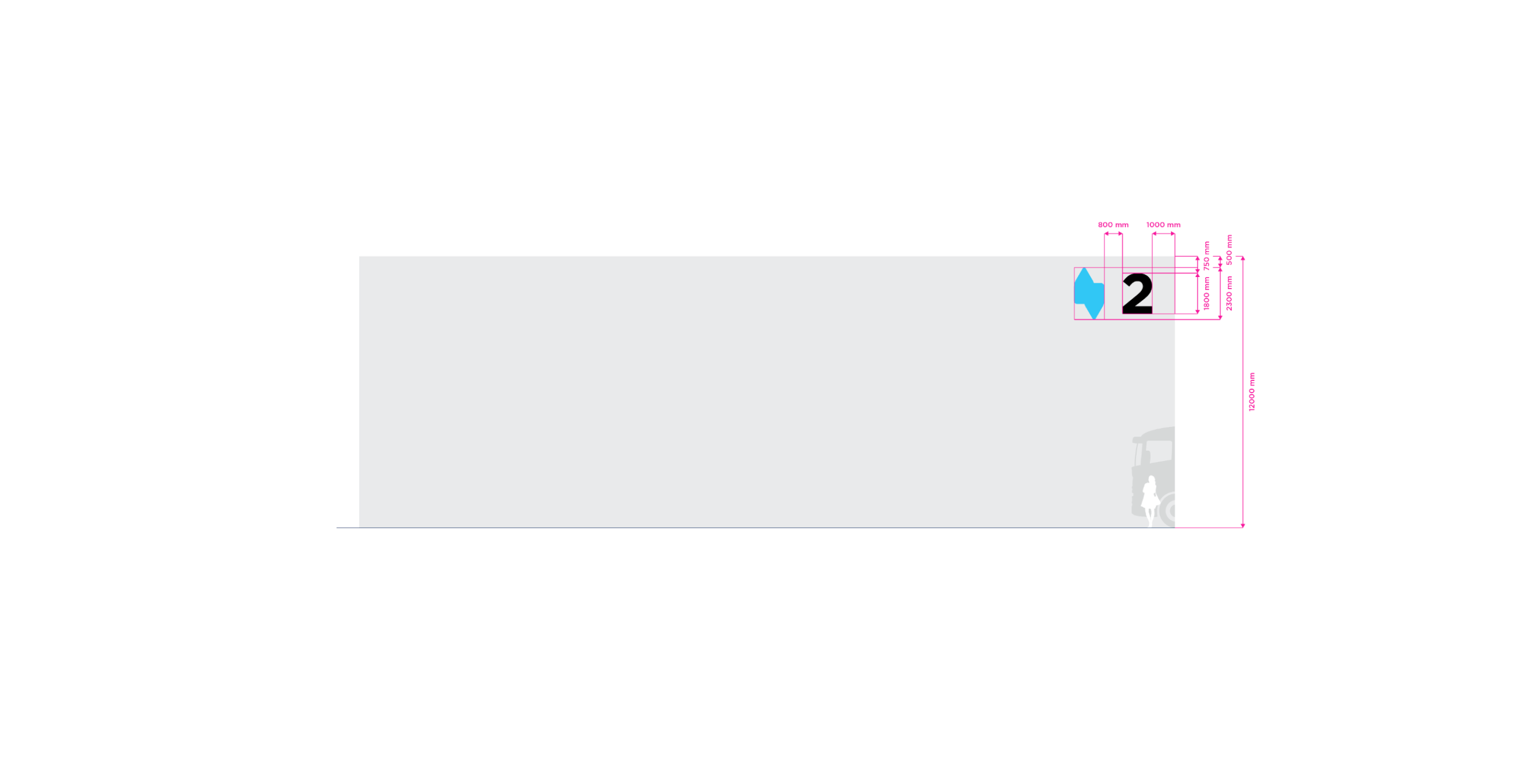

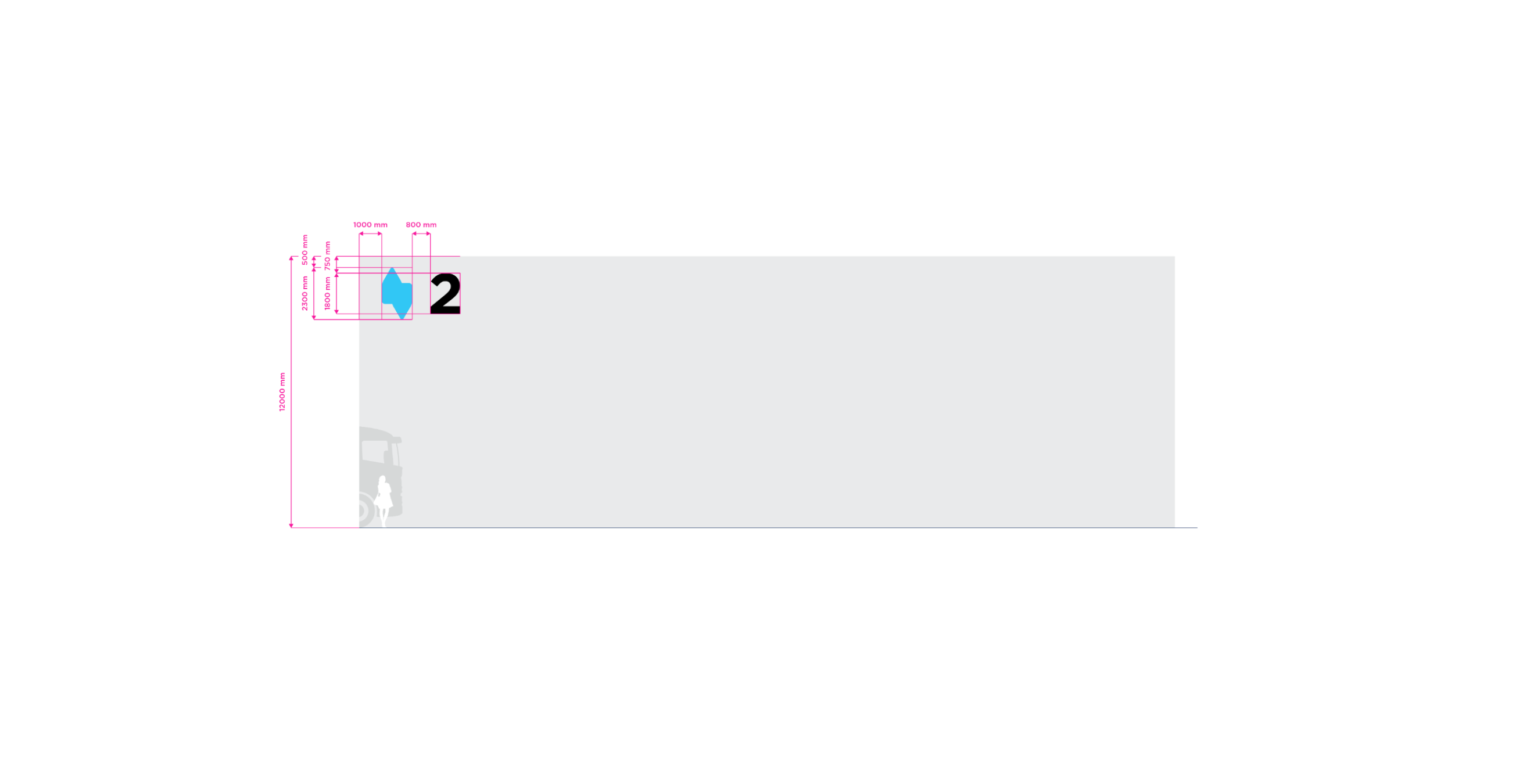

Logo instalation on the building
Technical details
Plastic illuminated Accolade logo with a total width of 8850 mm and height of 1800 mm, illuminated index with a total width of 2740 mm and height of 1800 mm. Character depth 120 mm. The individual characters are shaped and welded from AL sheet metal and painted with two-component acrylic paint in a RAL shade as agreed. The front surface of the characters is made of opal plexiglass with a translucent film of the required color; the index is without adhesive. The plexiglass is attached behind a glued inner plexiglass rim. Internal illumination with LED light-emitting diodes. Power transformers are located inside the signs. Individual signs will be mounted directly behind the back of the building wall. Power supply 230 V, 50 Hz, TN-S system, required supply min. CYKY3C x 1.5 mm2 10 A/D, power consumption approx. 200 W.
RAL 9002 |
RAL 7035 |
RAL 7046 |
