Navigation system elements
Totems and signs
Navigation system elements

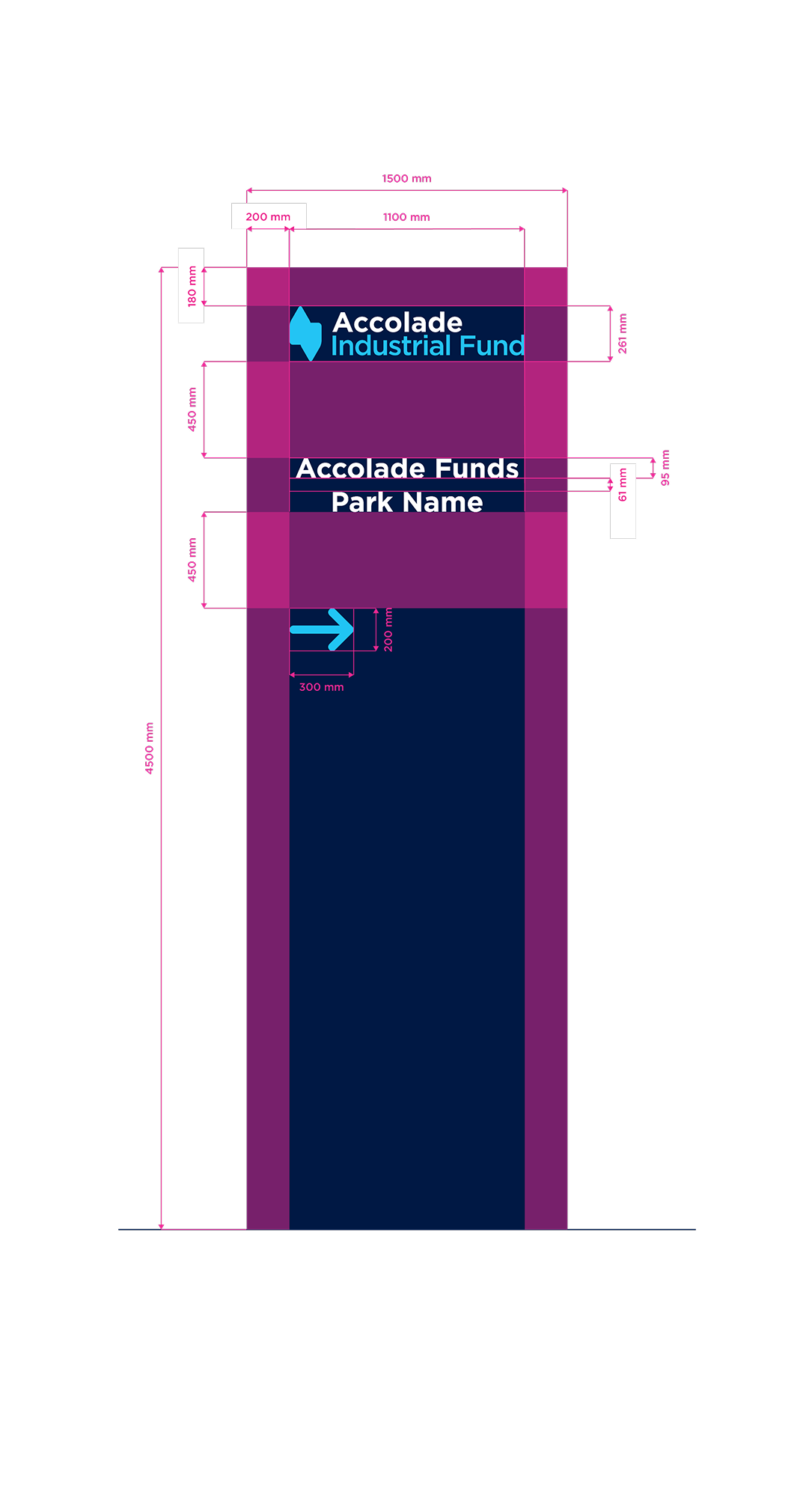

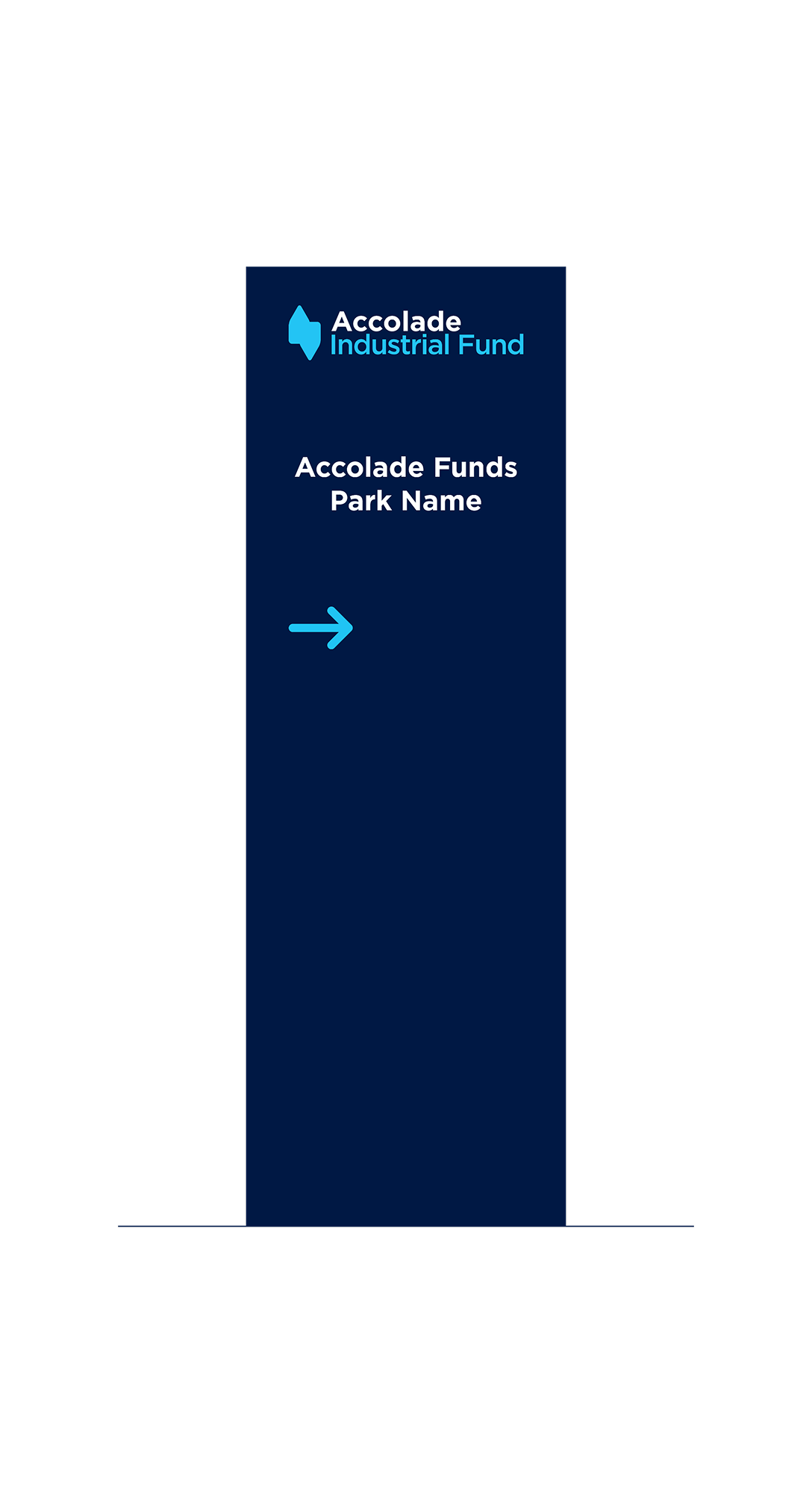

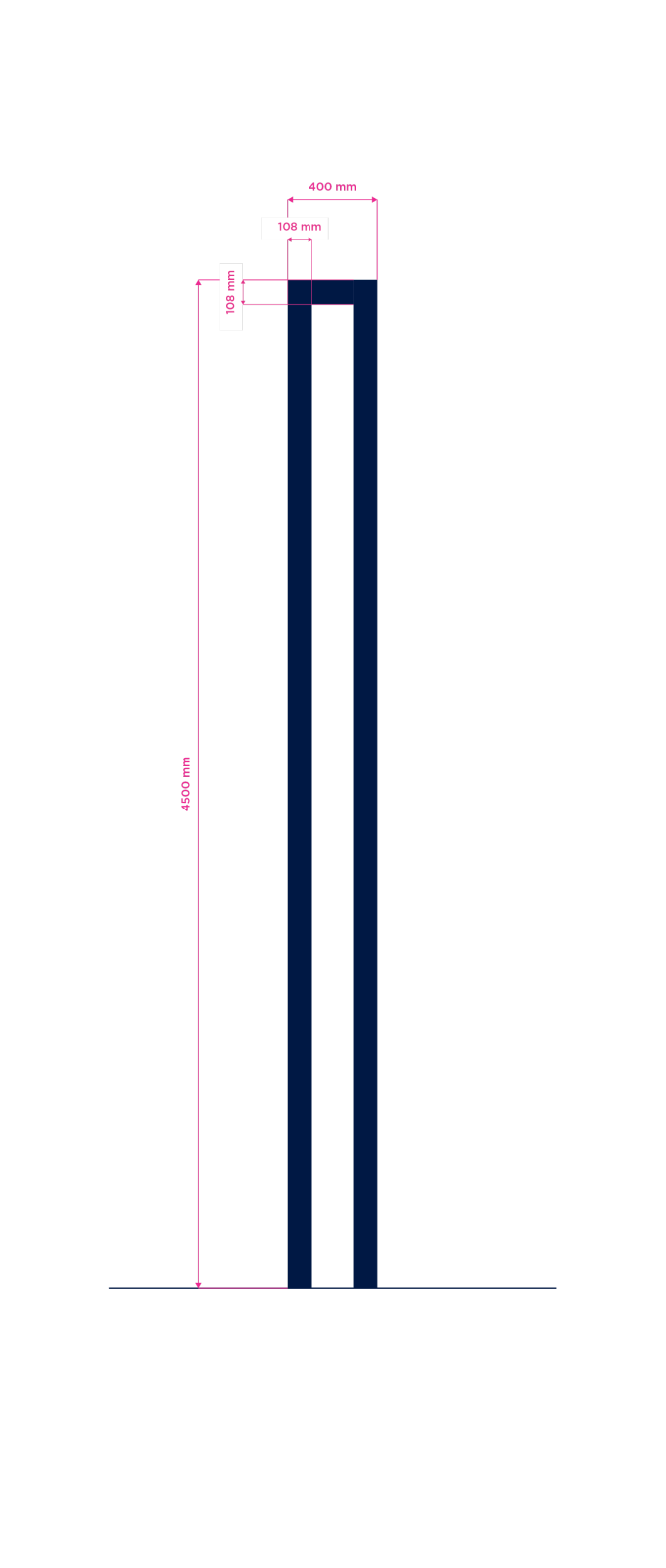

Entrance totem
Frontside
1500 × 4500 × 500 mm

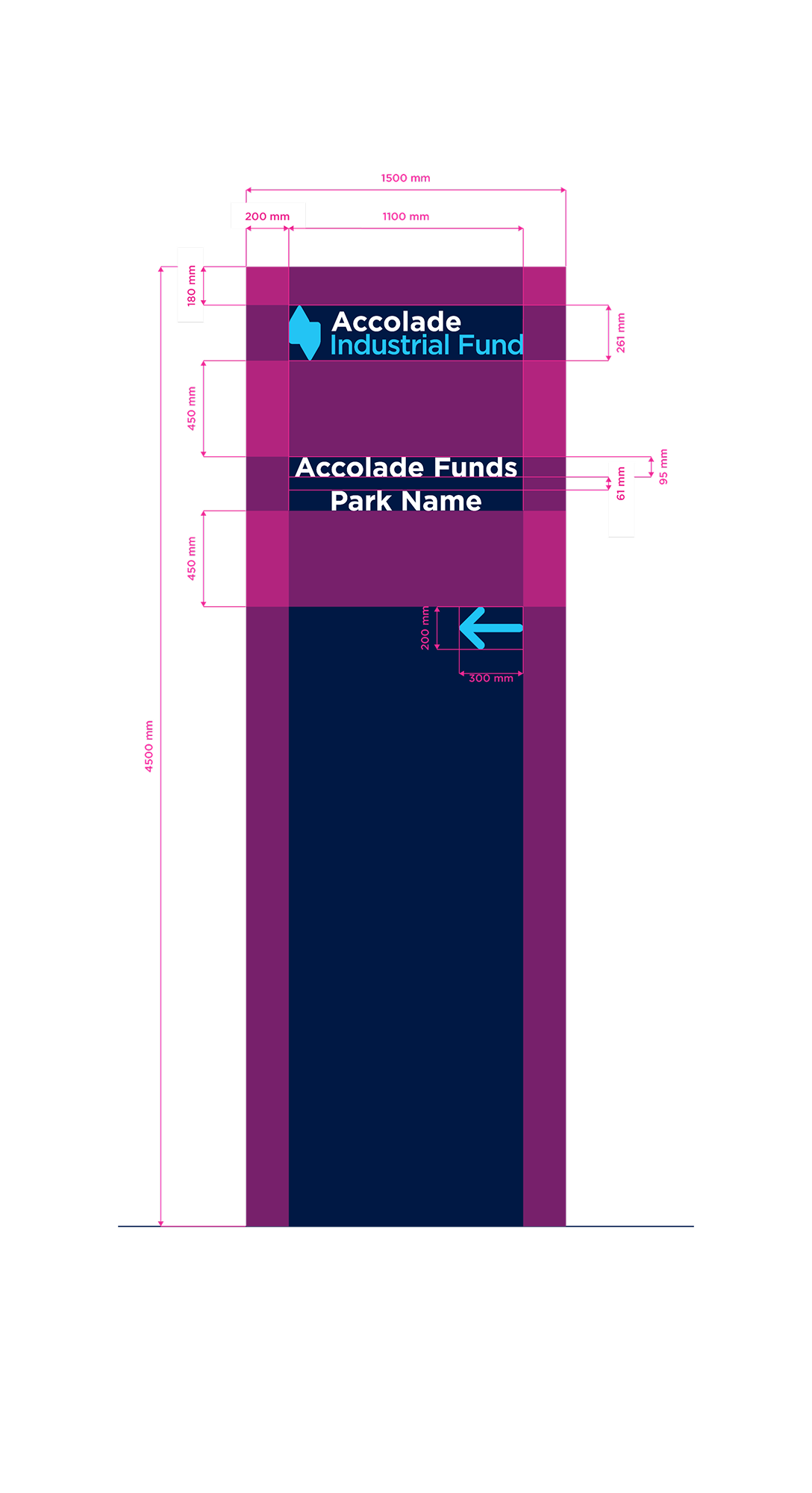

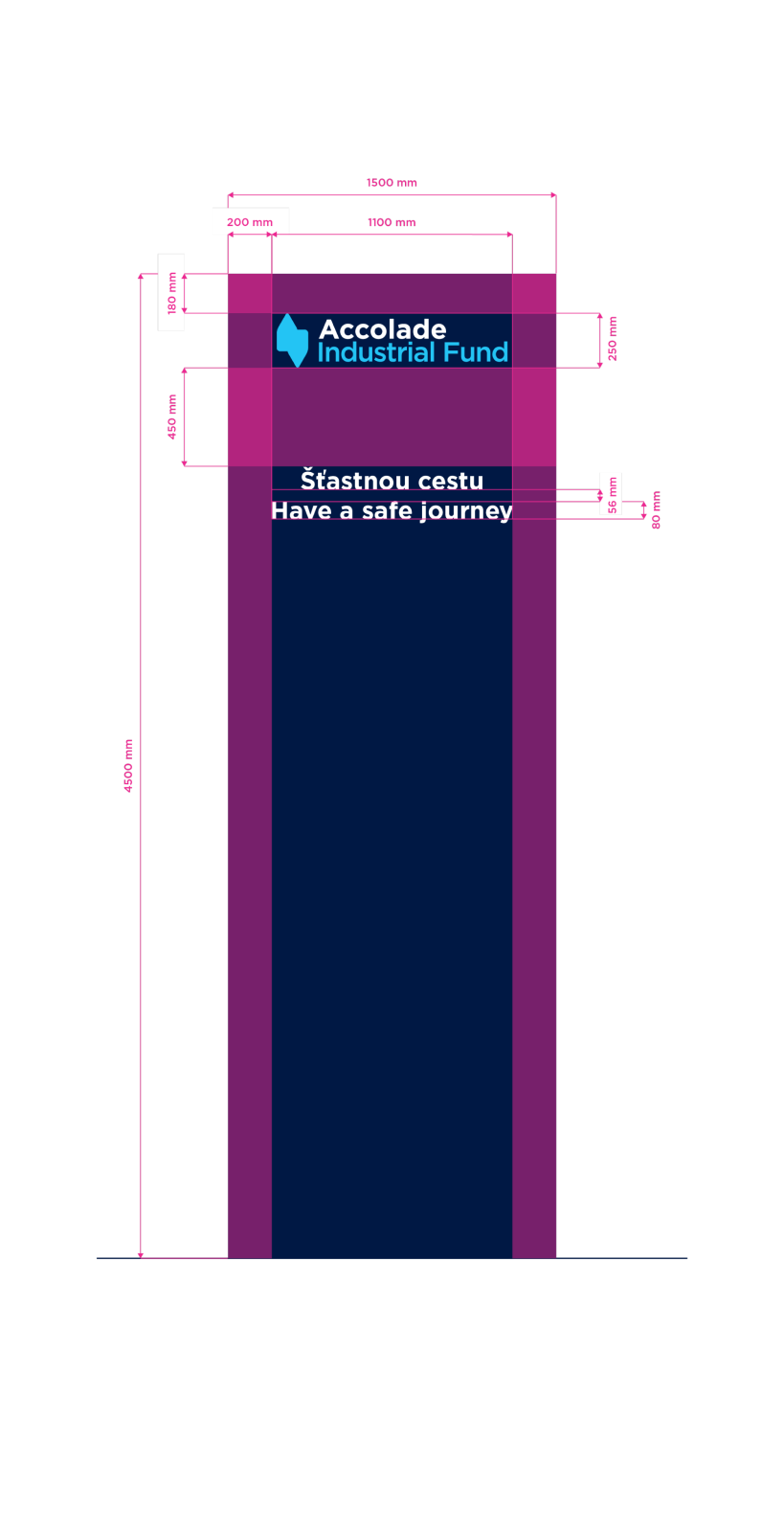

Backside
Navigation system elements

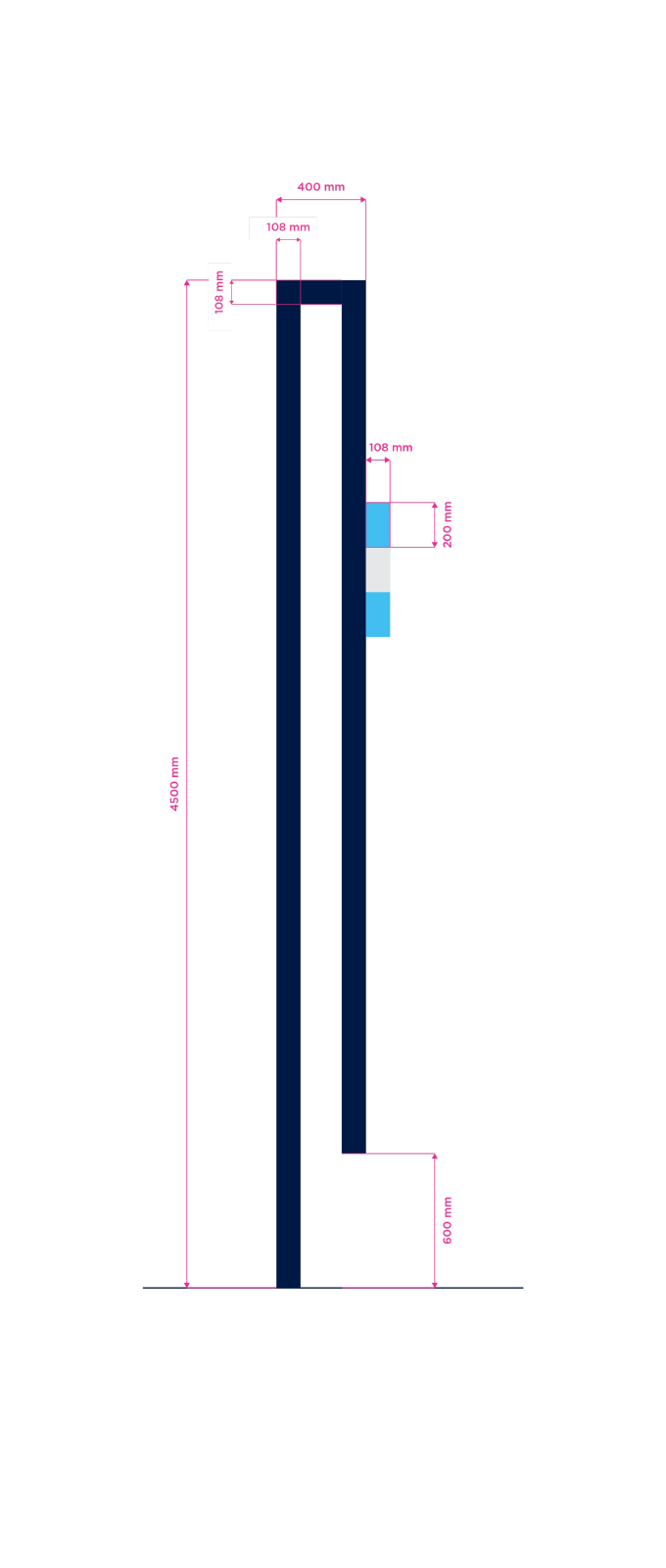

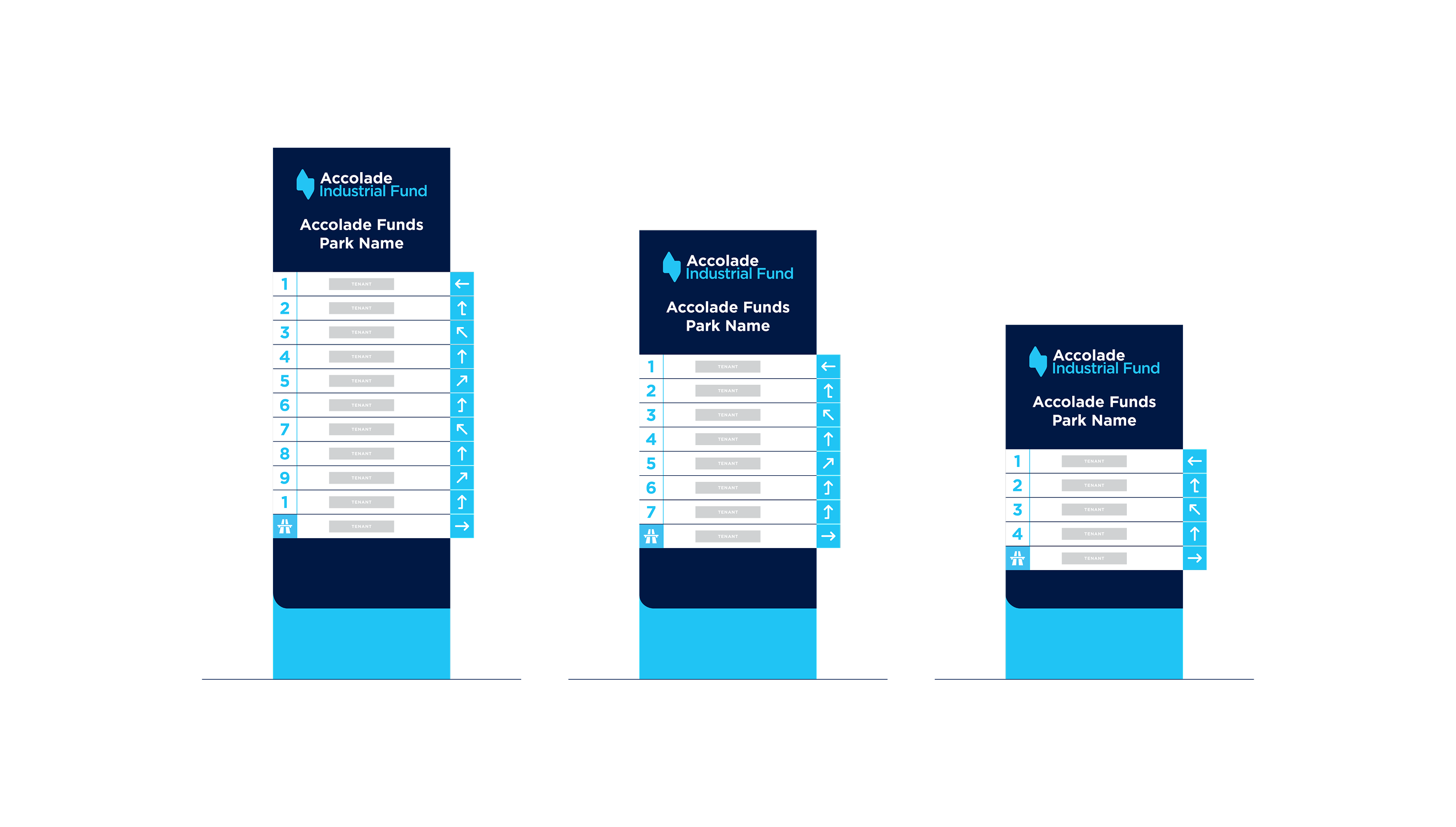

Tenant Totem
L size, 1500 mm

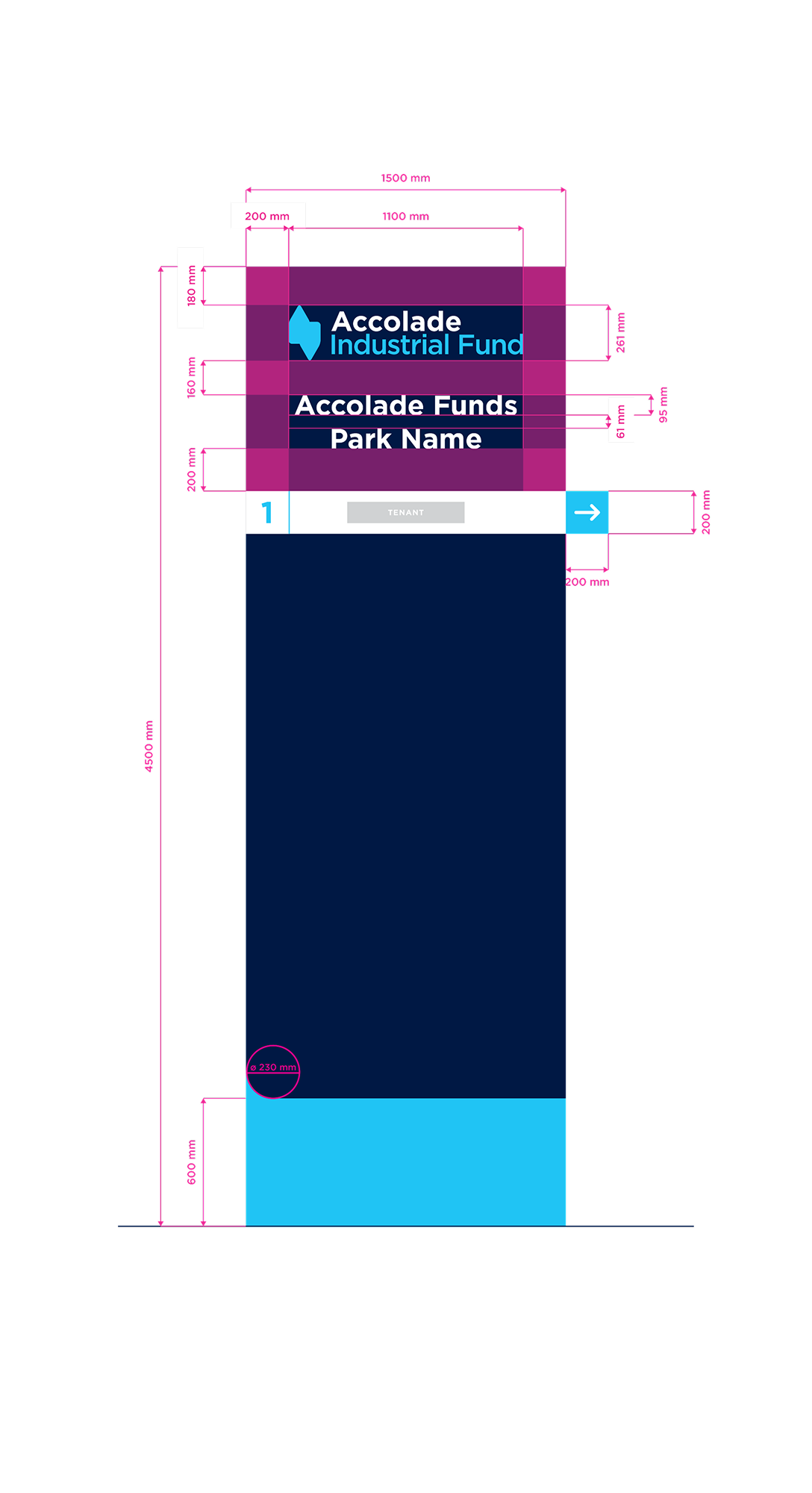

Frontside
1500 x 4500 x 400 mm
+ 200 mm arrow box
+ 200 mm arrow box

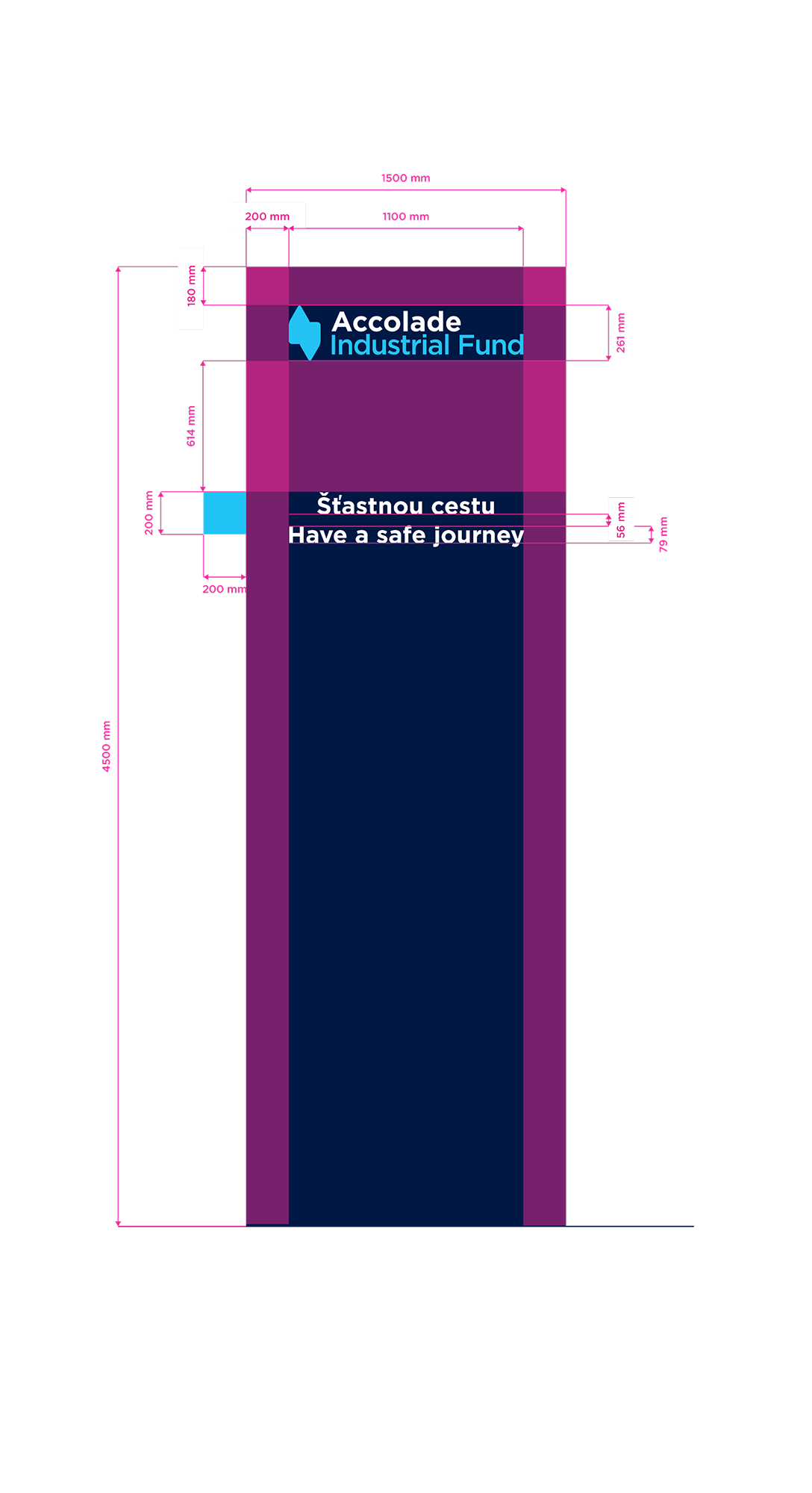

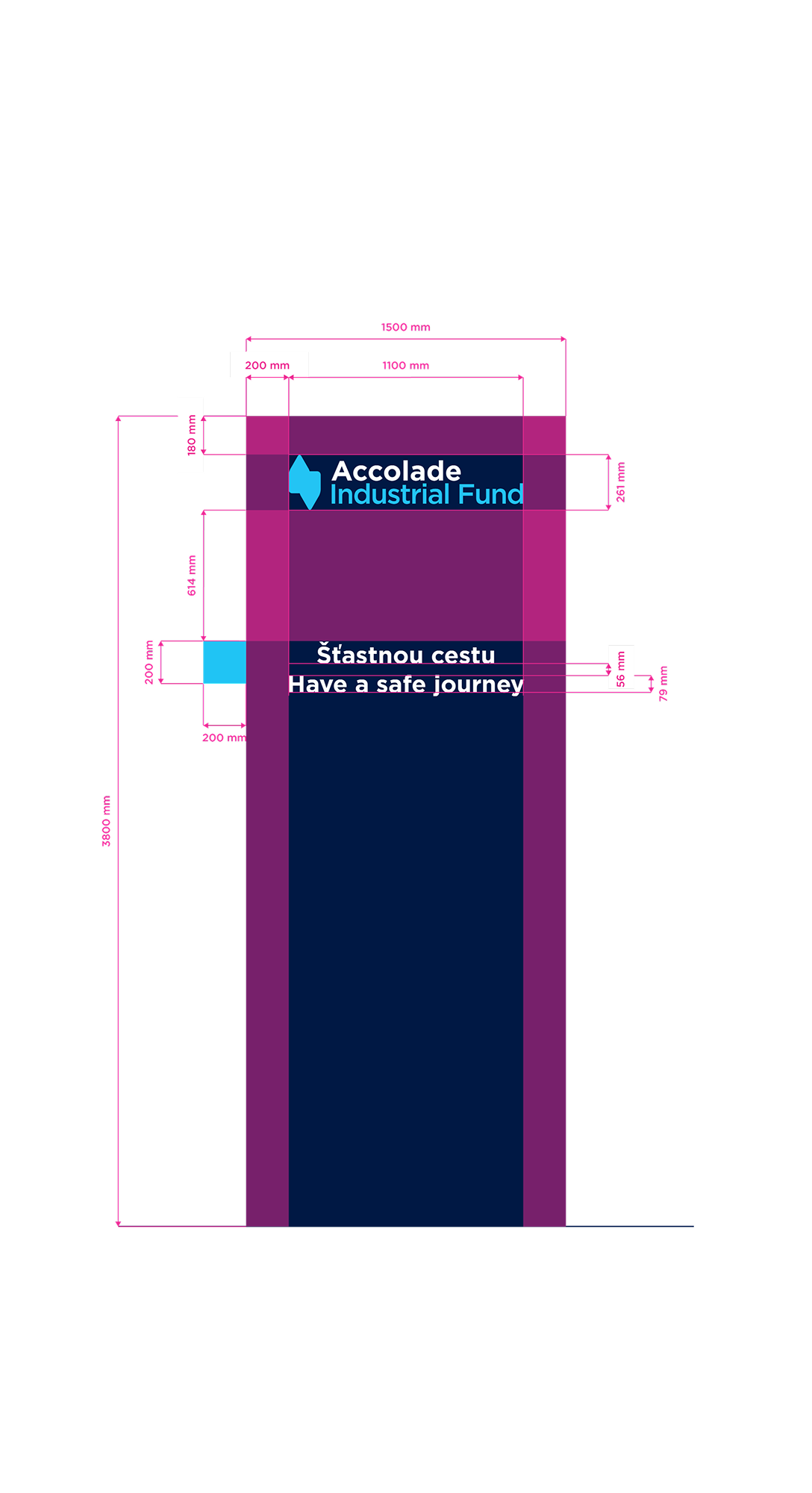

Backside

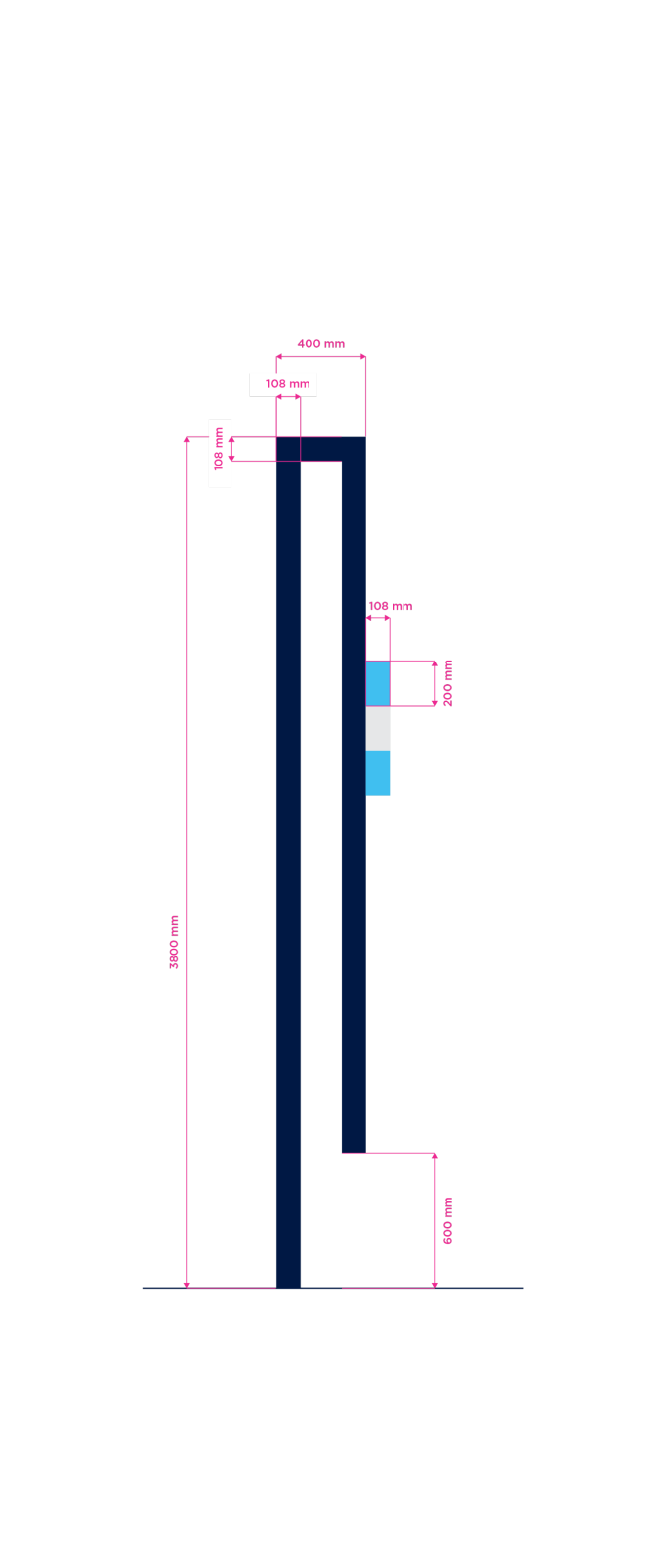

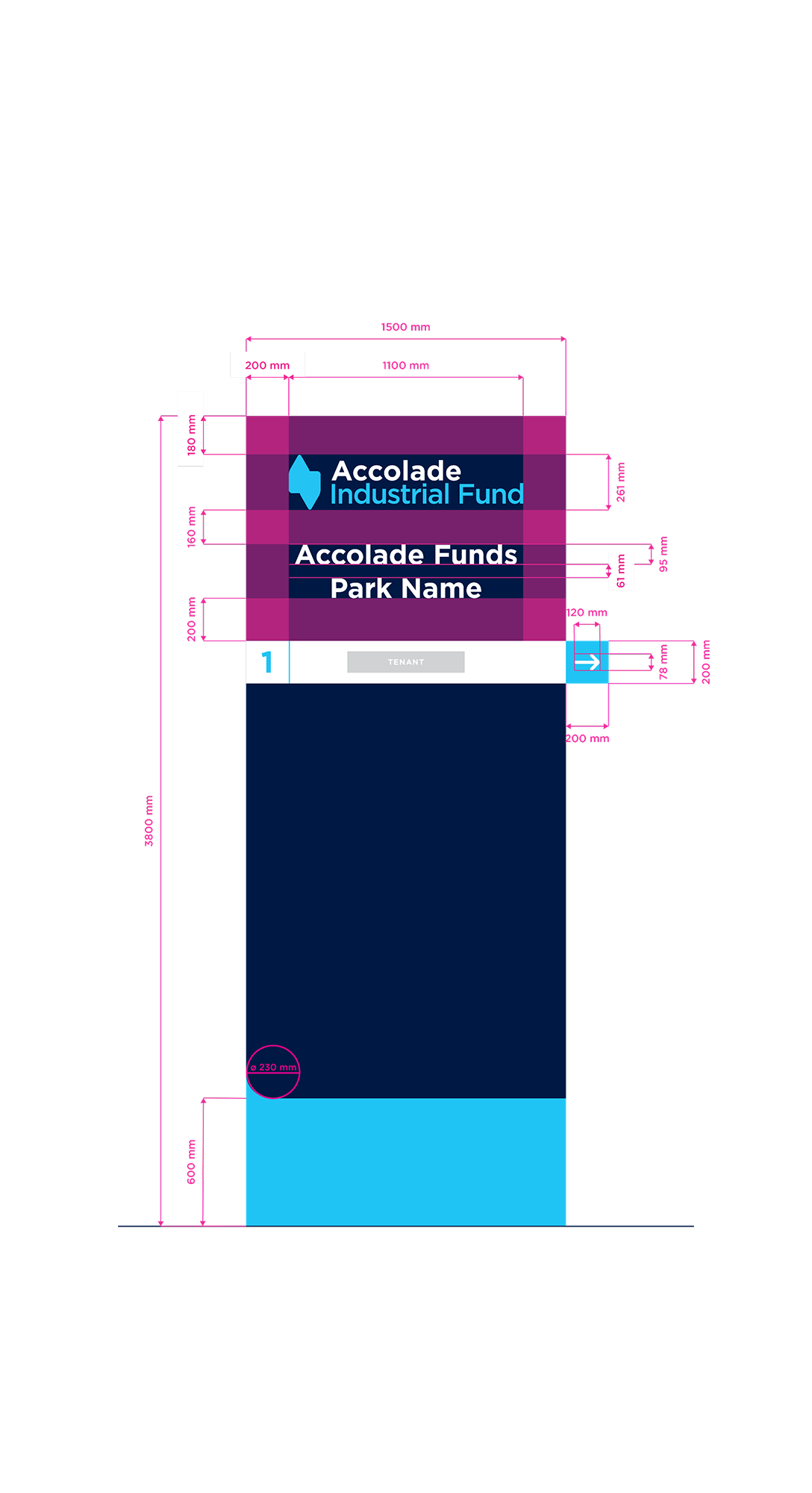

M size, 1500 mm
Frontside
1500 × 3800 × 400 mm
+ 200 mm arrow box
+ 200 mm arrow box

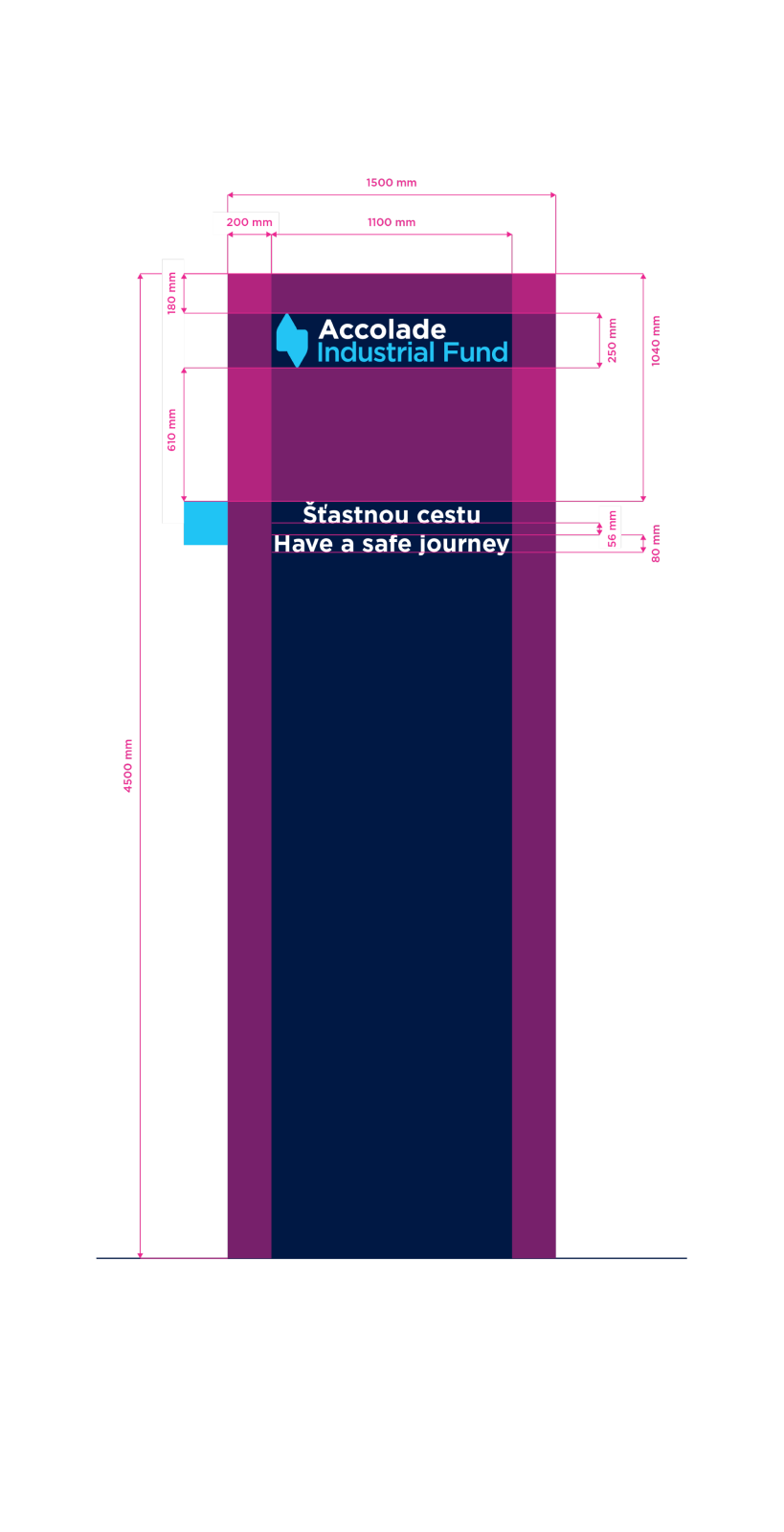

Backside

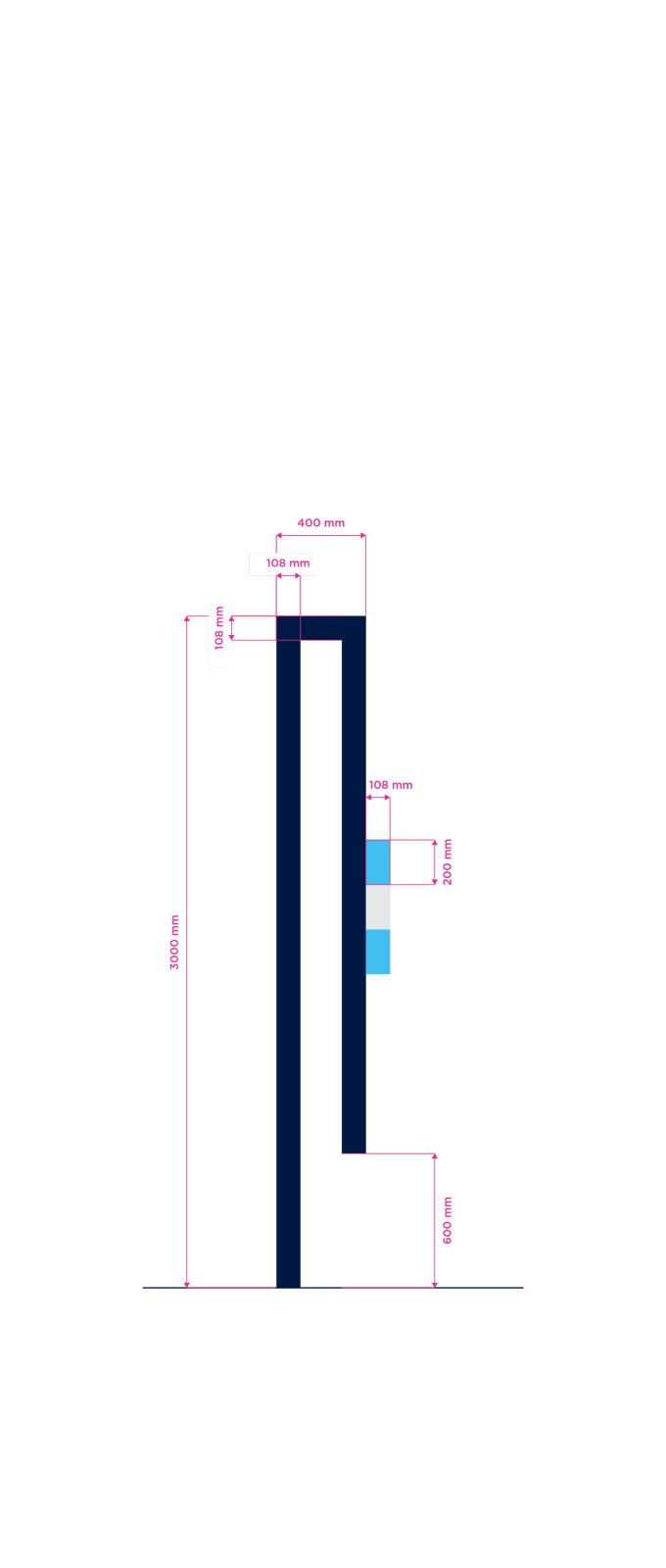

S size, 1500 mm

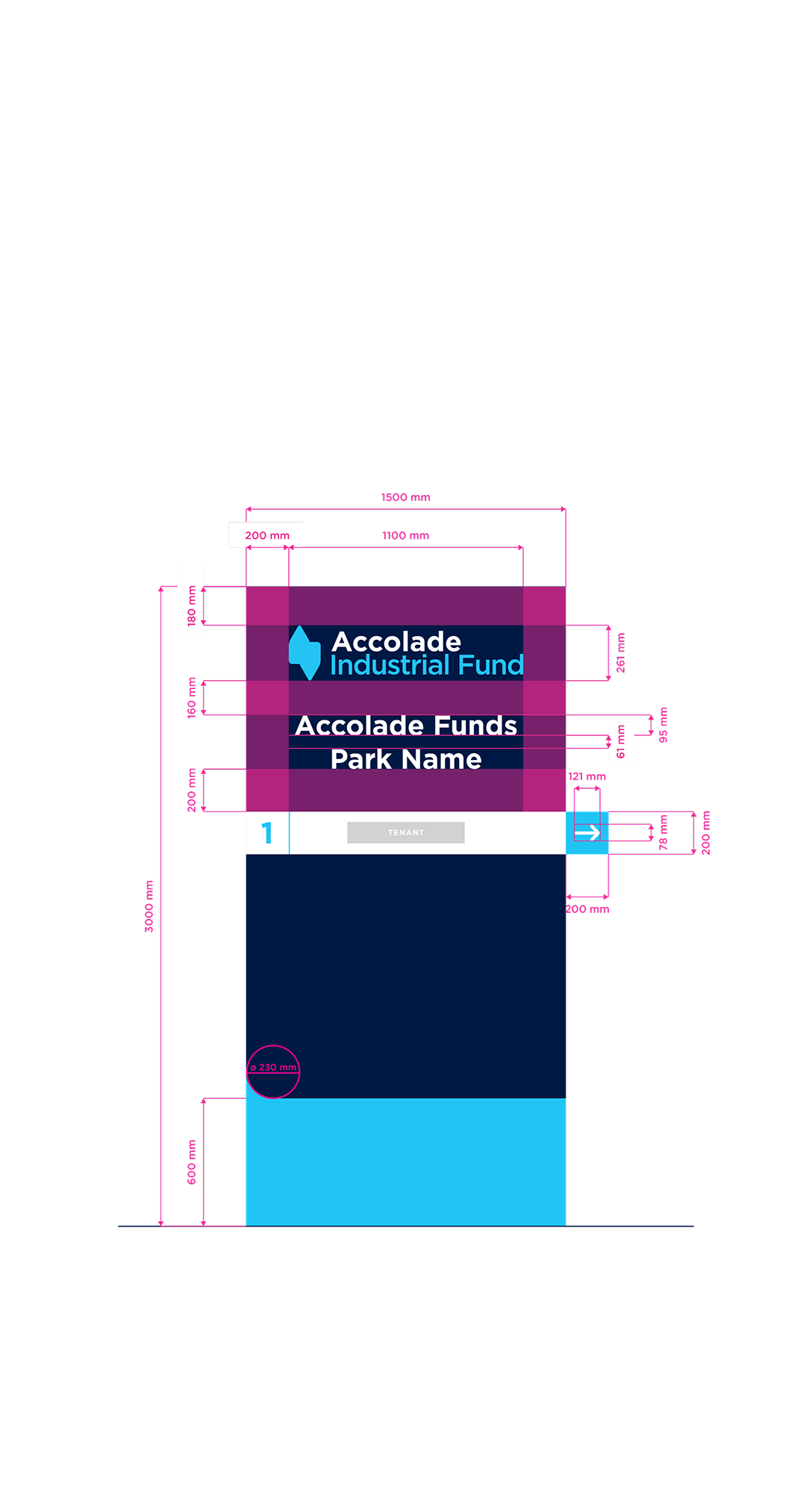

Frontside
1500 x 3000 x 400 mm
+ 200 mm arrow box
+ 200 mm arrow box

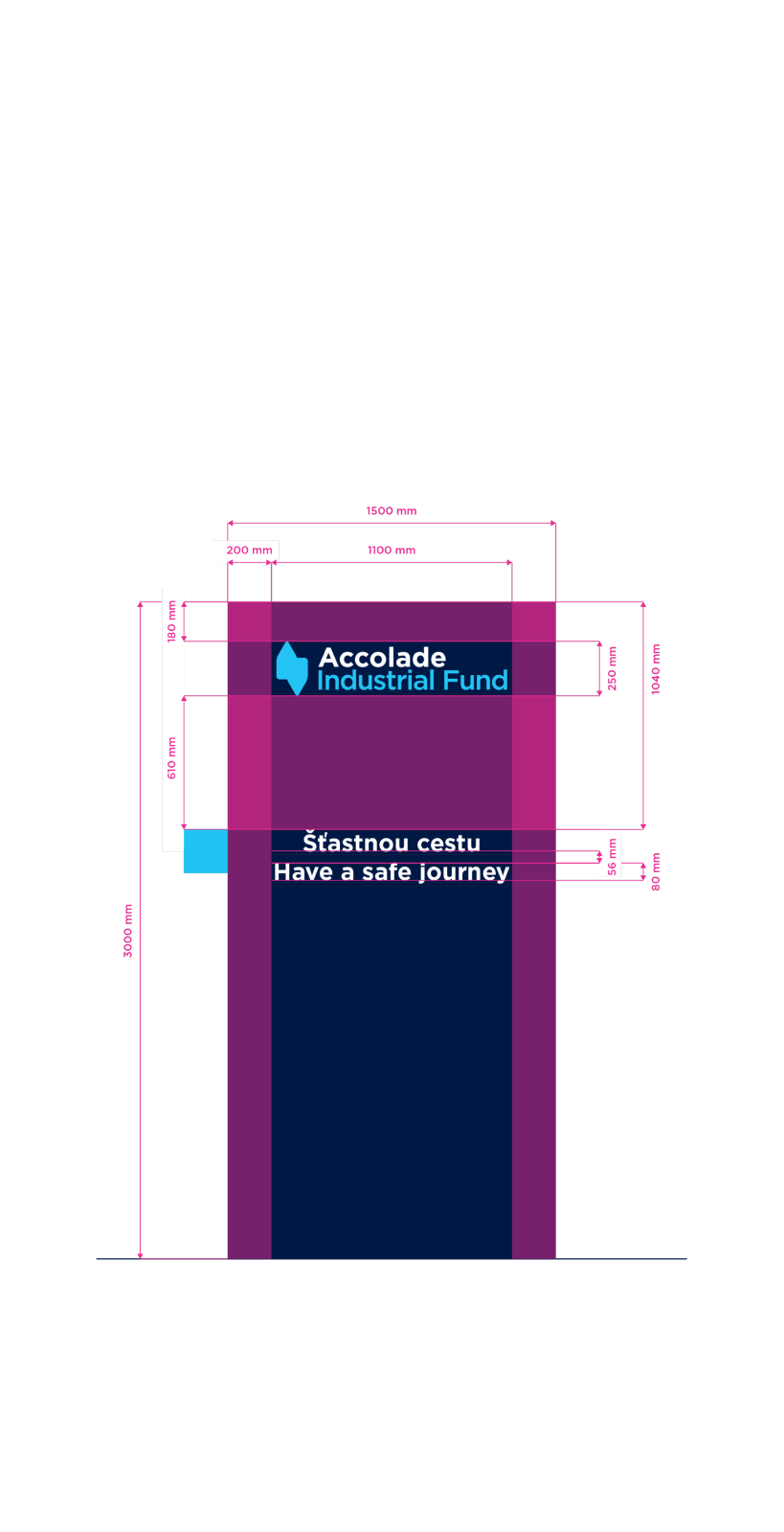

Backside

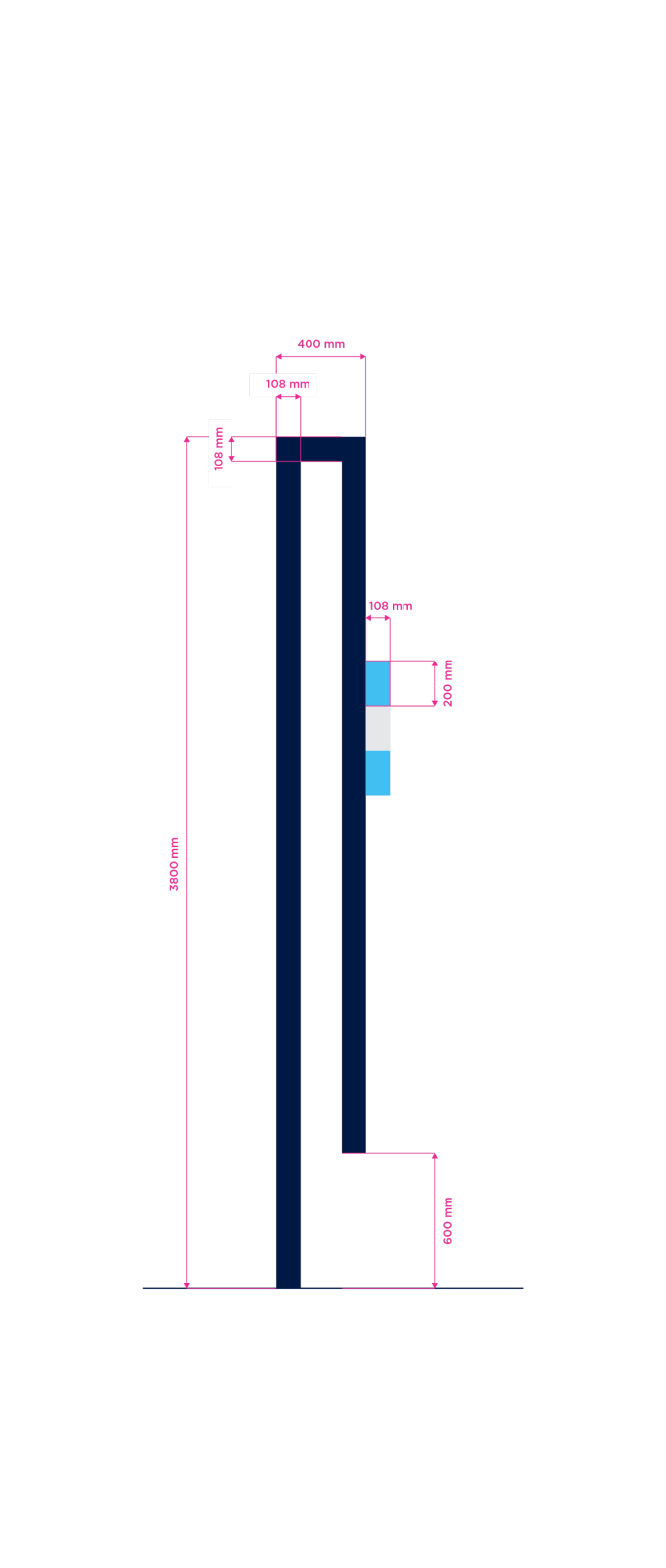

M size, 1400 mm
Frontside
1400 × 3800 × 400 mm
+ 200 mm arrow box
+ 200 mm arrow box

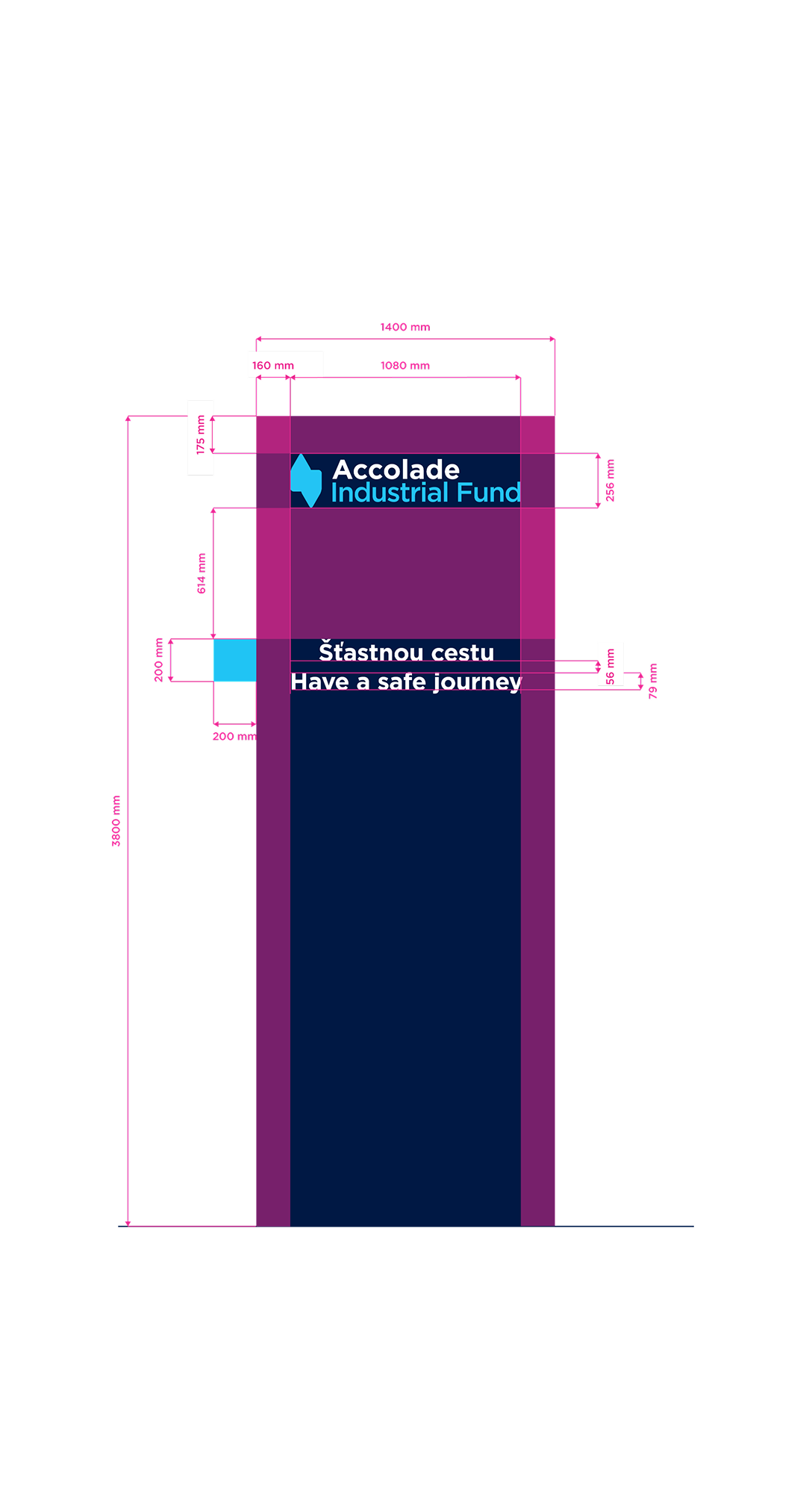

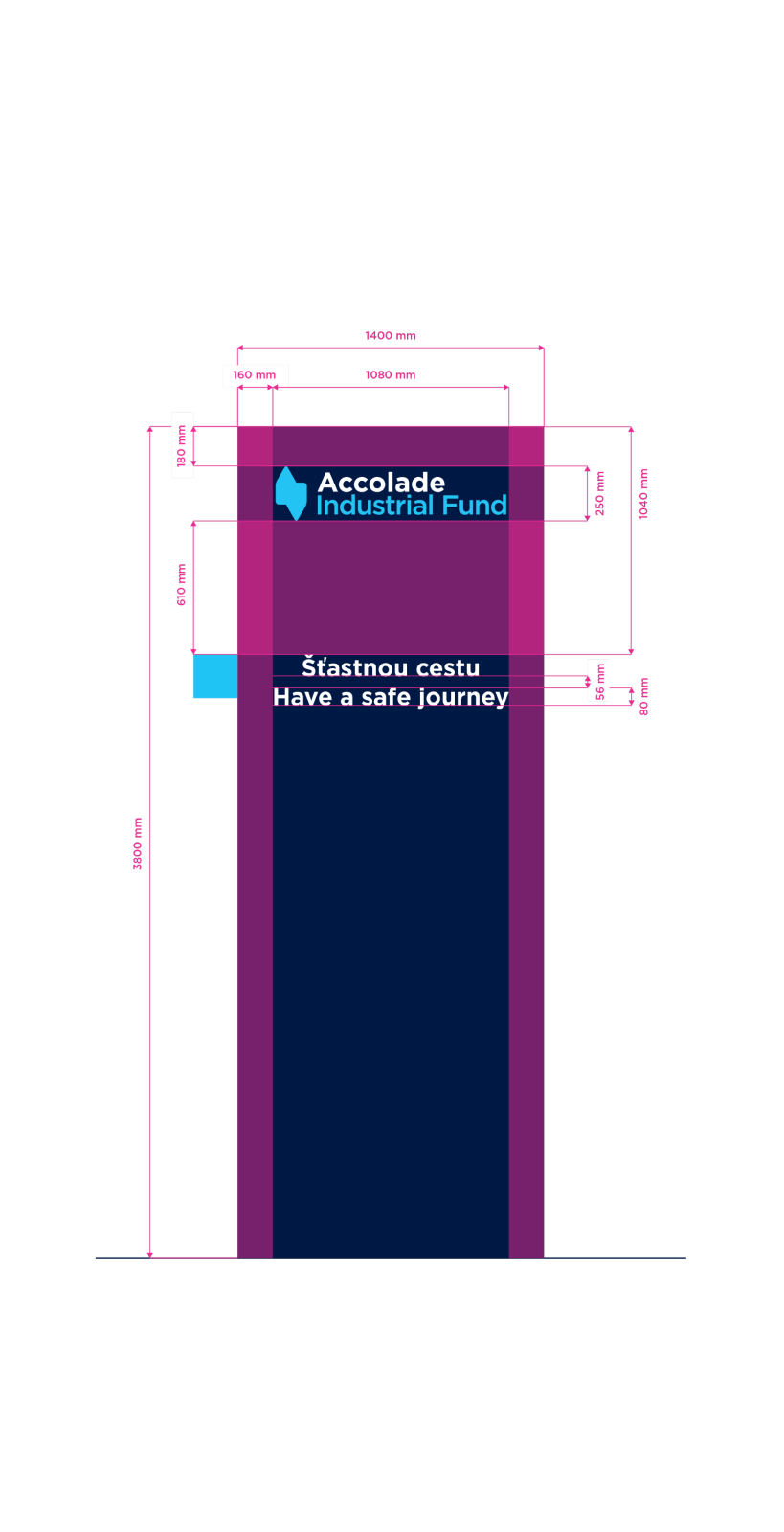

Backside

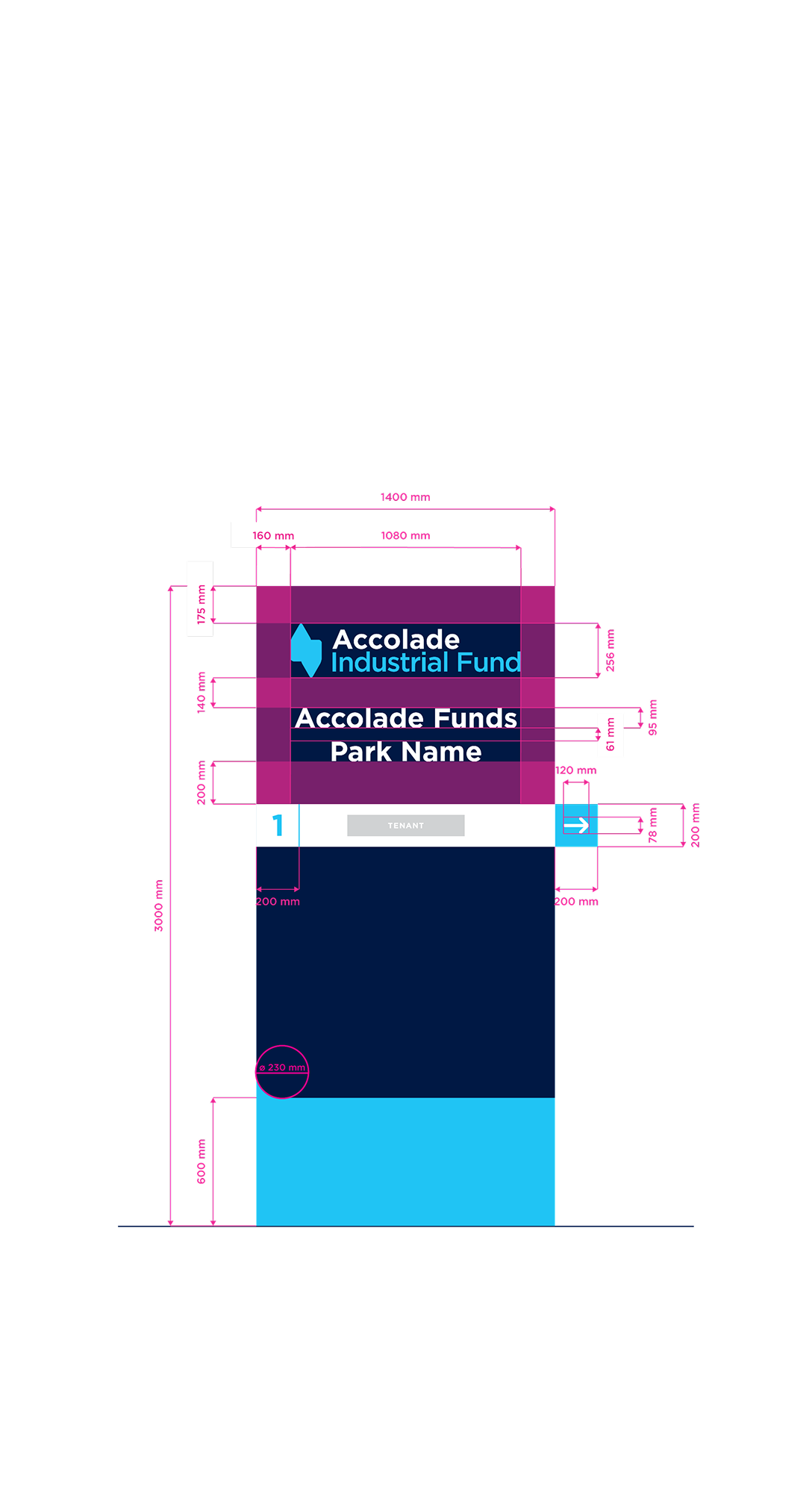

S size, 1400 mm
Frontside
1400 x 3000 x 400 mm
+ 200 mm arrow box
+ 200 mm arrow box

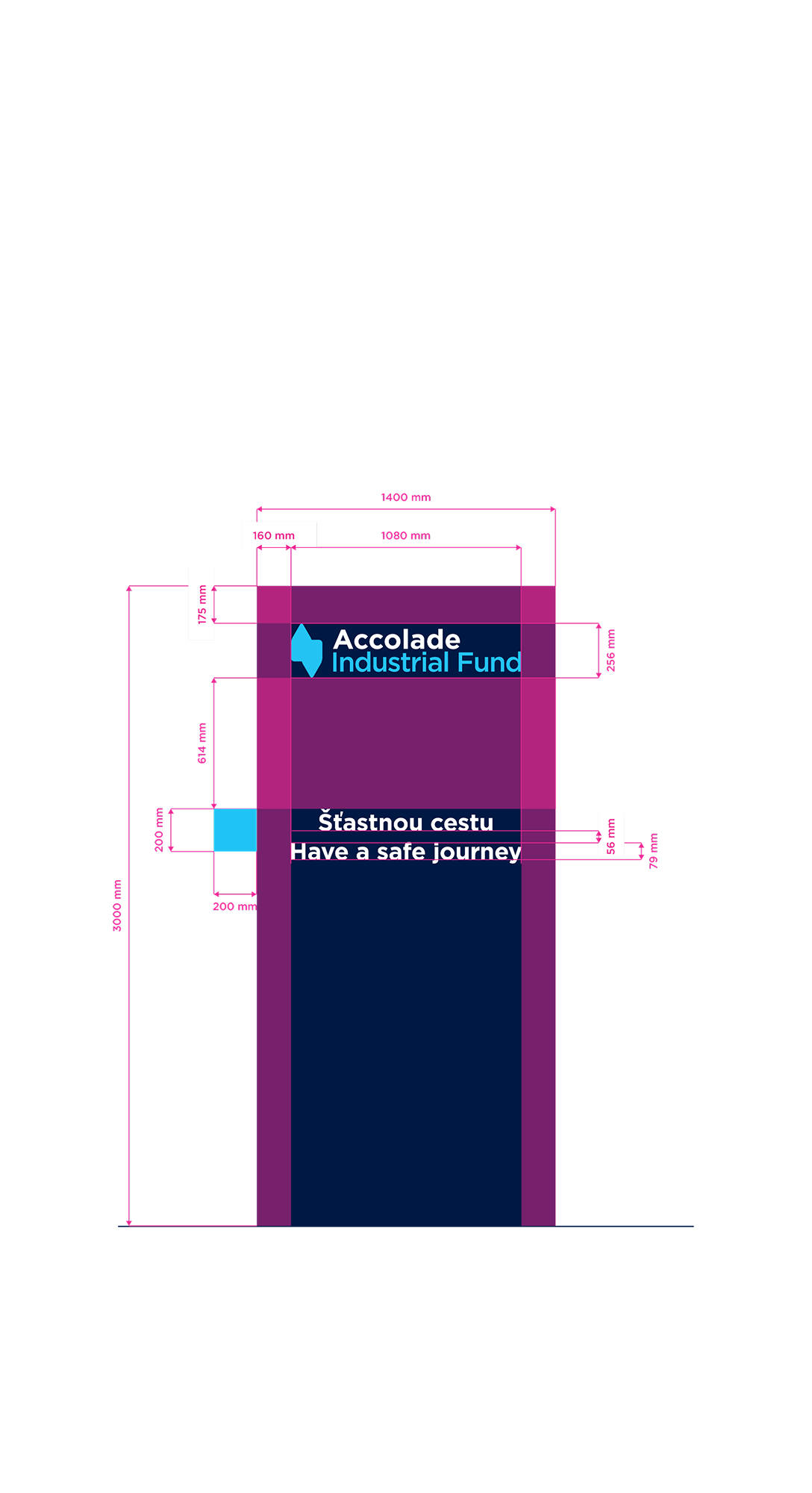

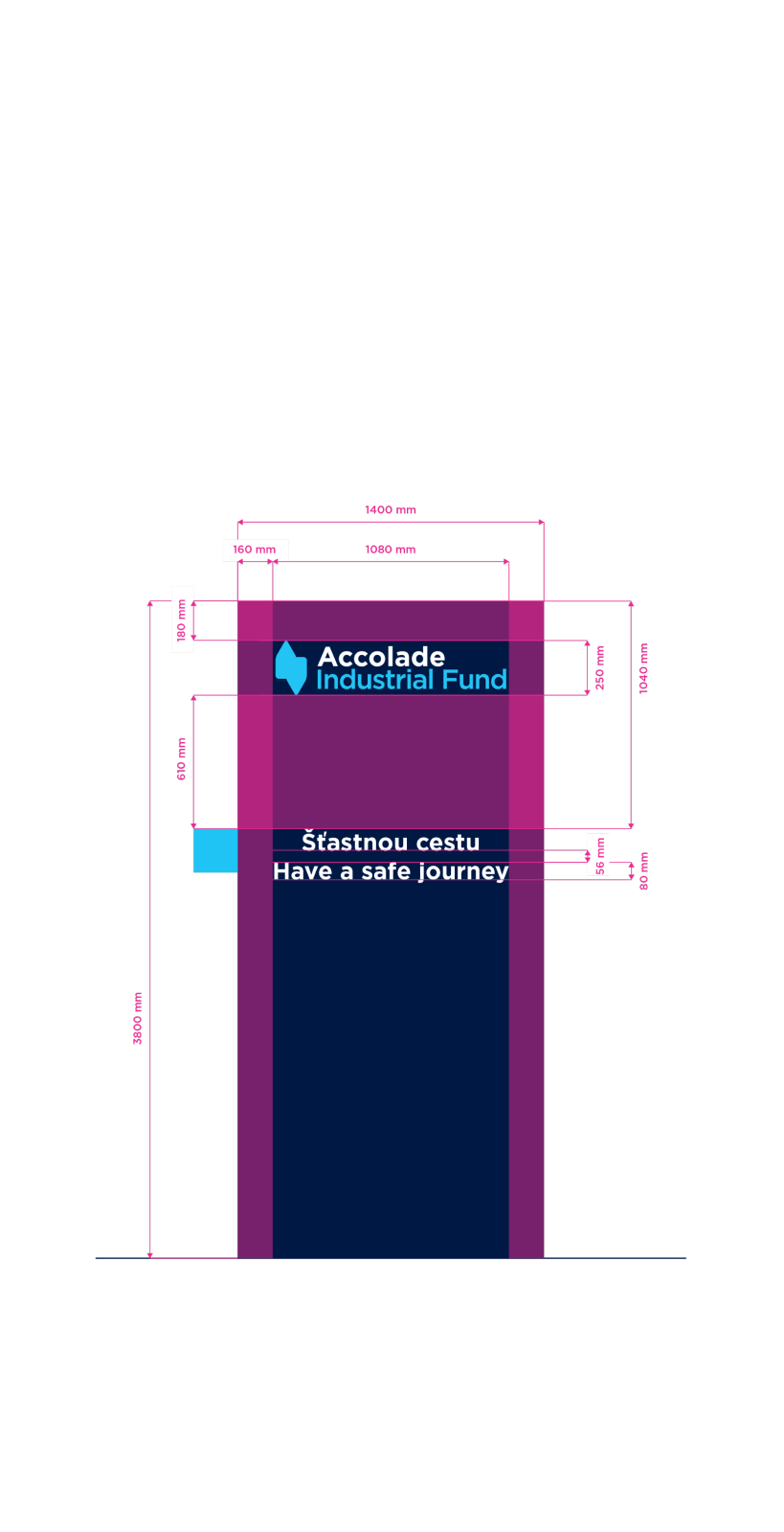

Backside
| Shape | Material specification |
|---|---|
| Hollowed panel with internal light, backlit letters and logos. | The dark blue surface is made of Dibond, painted in RAL 5013. The light blue surface inside the totem pole is made of opal Plexiglas, covered with a blue translucent film. Supporting frame made of hot-dip galvanized steel profiles. Backlighting with LED modules inside the totem pole. Anchoring to concrete foundation for chemical anchors. |
| L size, 1500 mm | M size, 1500 mm | S size, 1500 mm |
|---|---|---|
| Use a maximum of 11 tenant lines. | Use a maximum of 8 tenant lines. | Use a maximum of 5 tenant lines. |
Navigation system elements
Tenants Sign

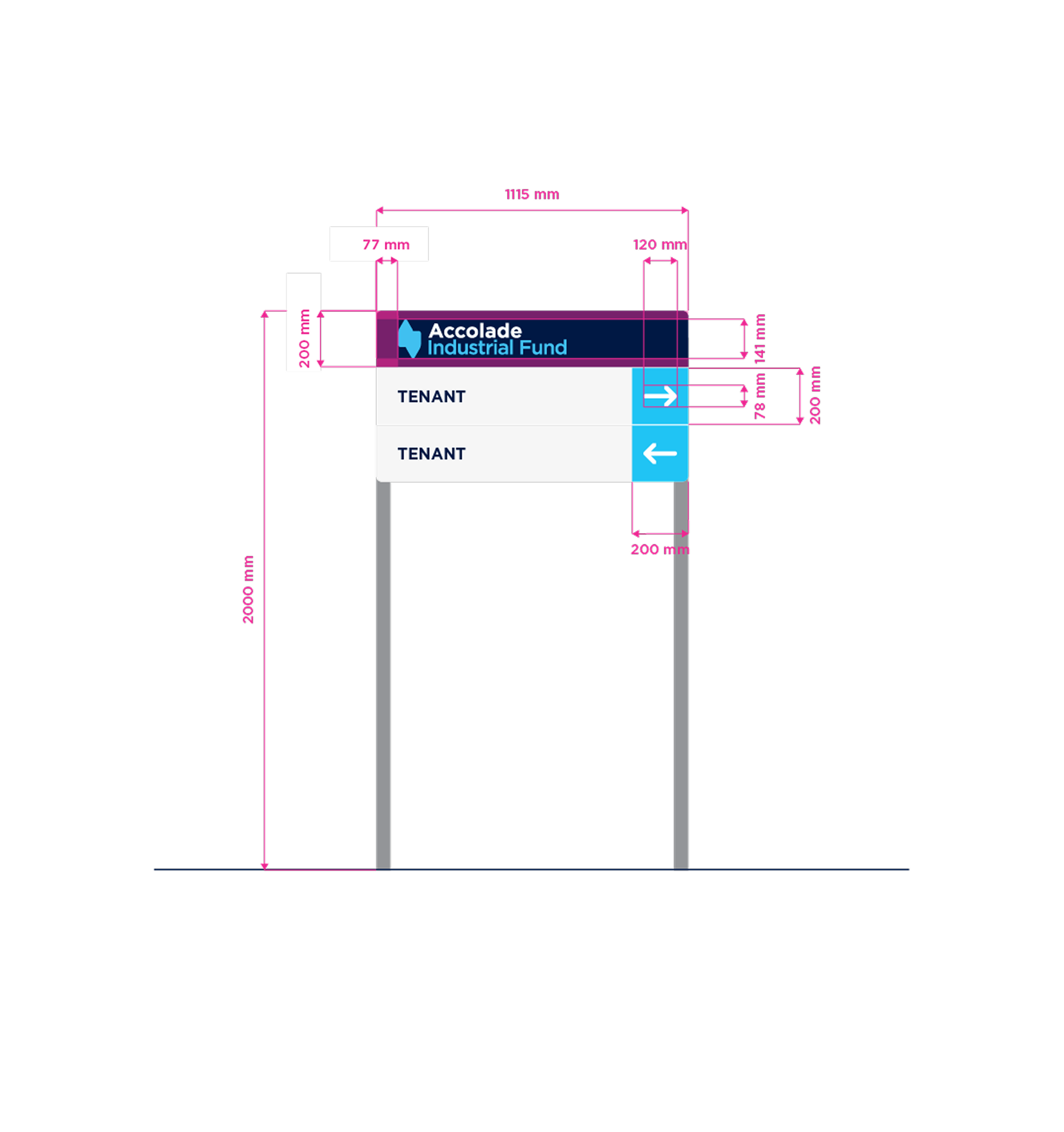

Two row type

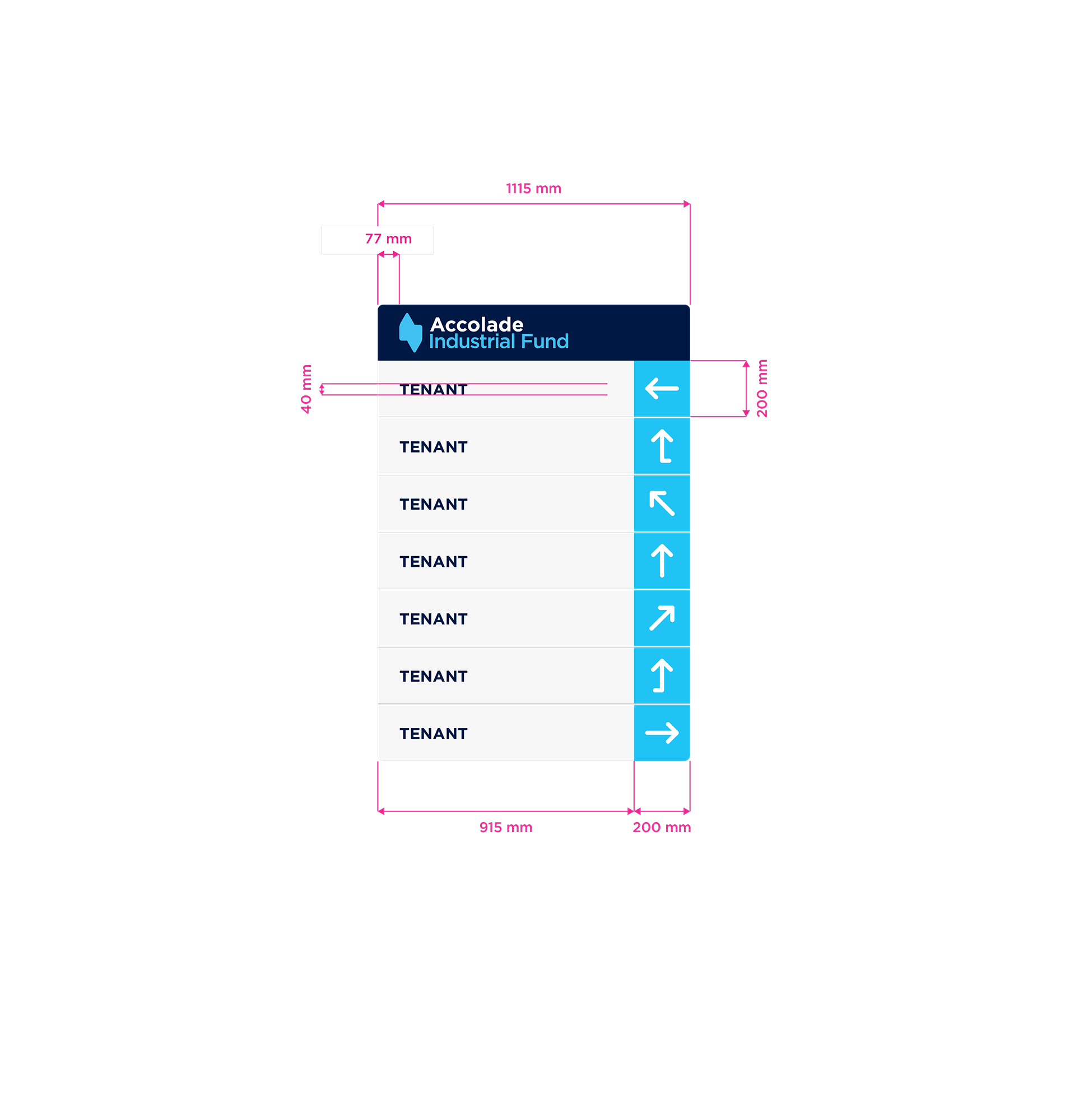

Types of direction arrows
| Dimensions | Shape |
|---|---|
| 1115 × 405 mm × 2000 mm | Aluminium sign |
